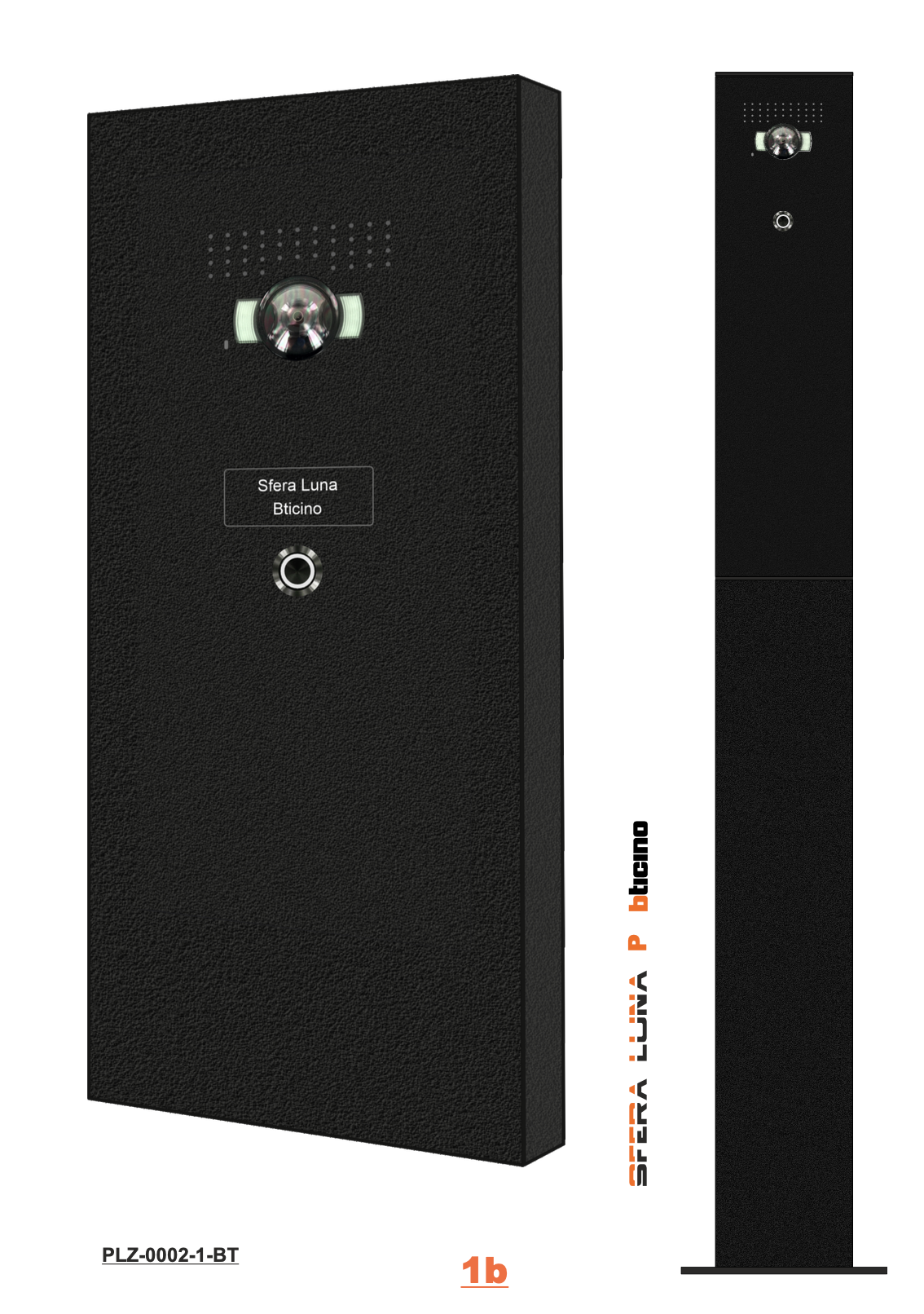

SFERA LUNA VIDEO INTERCOM COMMUNICATION COLUMN - HIGH-END - FLUSH-MOUNTED BTICINO COMPONENTS

Design Column for Videophony for Lovers of a Super Sleek Look

The column is compatible with all Bticino modules, e.g.: Bticino camera ³⁵¹⁵⁰⁰ with wide-angle lens, viewing angle  ^{horizontal 152° - vertical 96°.}

Communication column/pole available in all RAL colors of your choice, standard black RAL 9005 txt.

The modules are completely flush-mounted without protruding edges for a streamlined design.

Anti-vandal IK08.

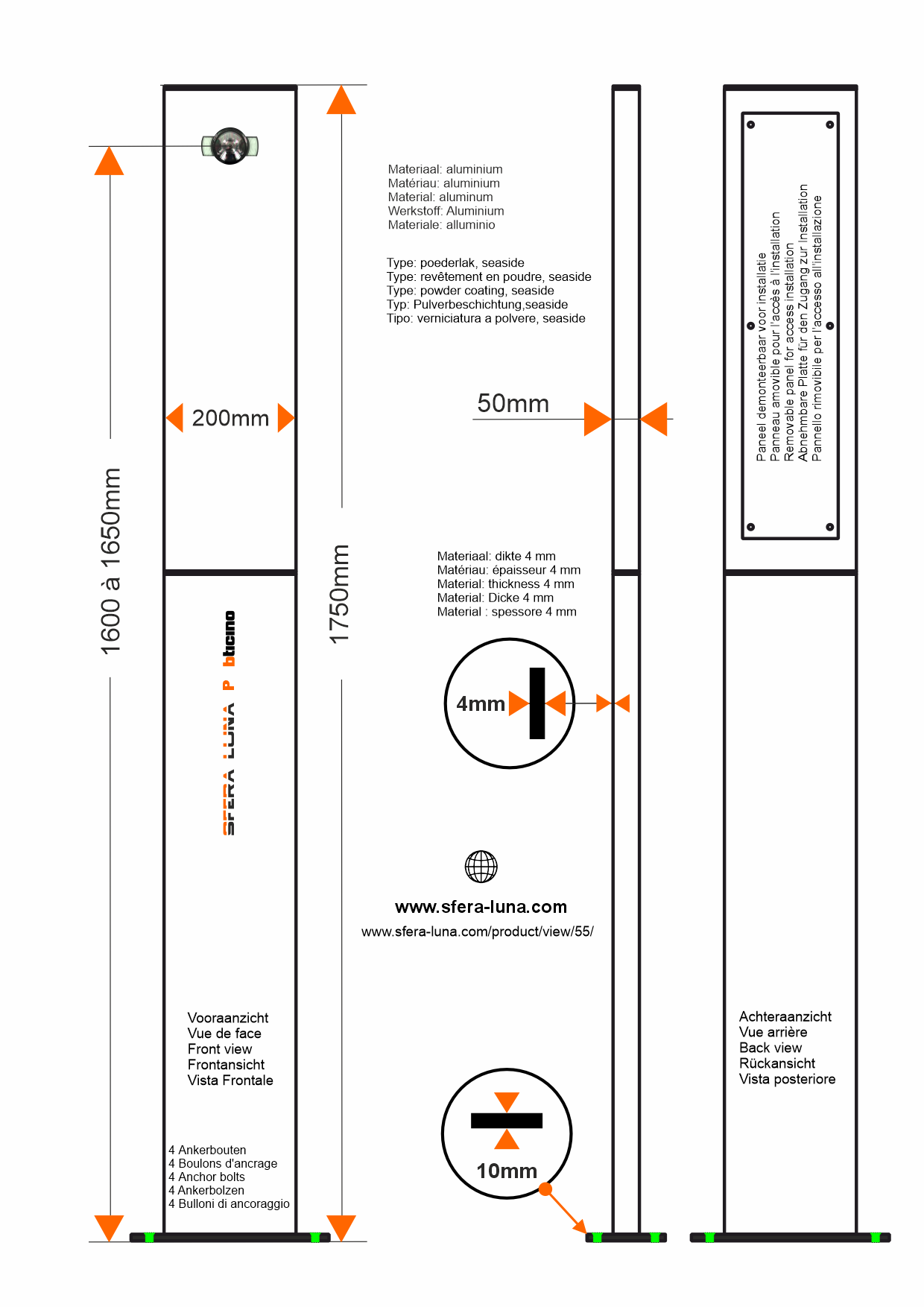

Dimensions:

• Height: 1750 mm

• Width: 200 mm

• Column depth: 50 mm

• Thickness of mounting base plate: 10 mm

• Width of mounting base plate: 300 mm

• Depth of mounting base plate: 150 mm

• All RAL colours available

Sfera Luna (partner of the Legrand Group & Bticino) (copyrighted model)

We supply:

• Post/column + fully recessed front panel in RAL colour

• Fully flush-mounted installation for the Bticino components

• 351105pkm – Plexiglas for mounting in a plate

• 1 doorbell button

• 1 interchangeable nameplate

• 4 fixing bolts

• Cover plate to hide the fixing bolts at the bottom

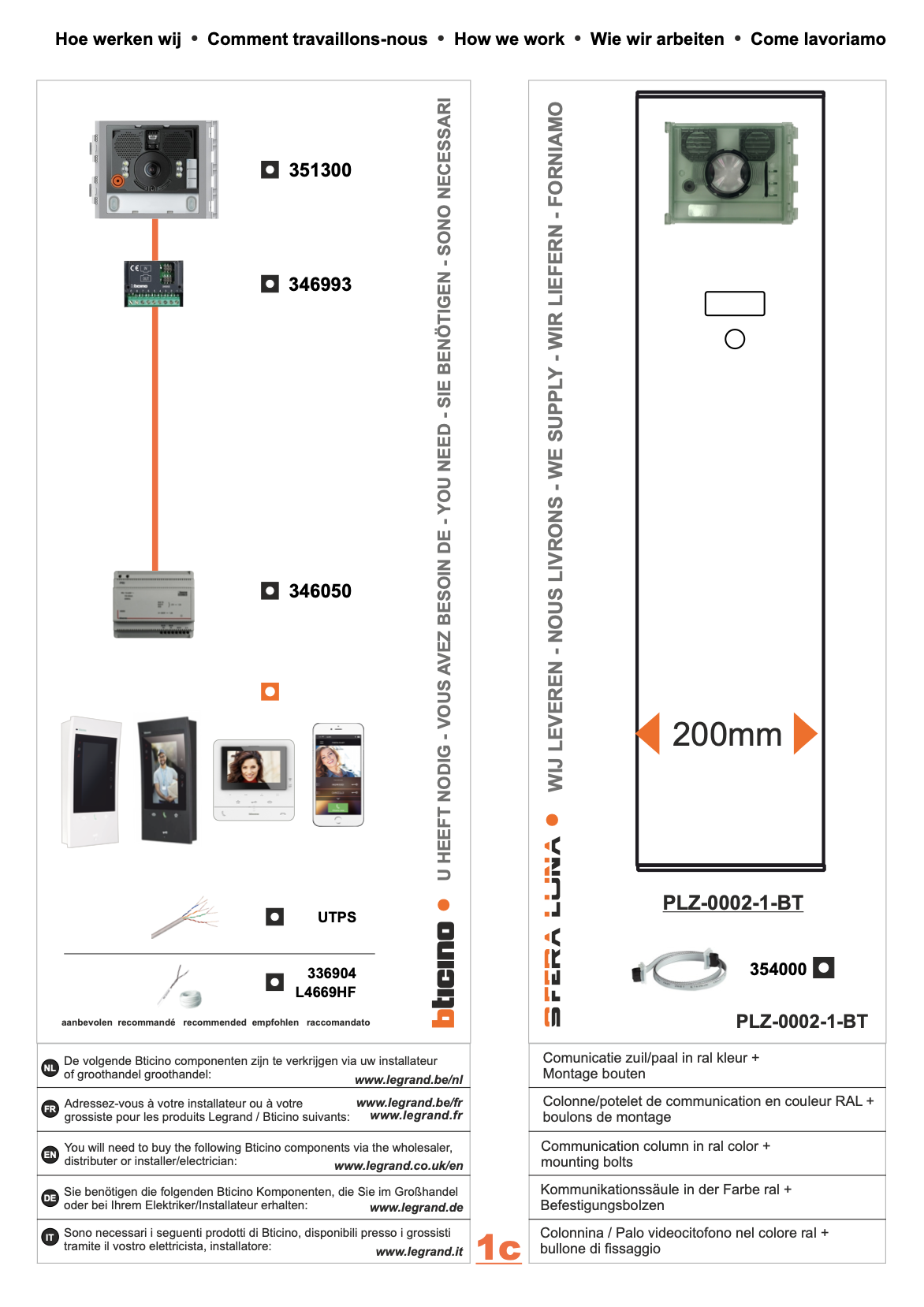

You need the following Bticino components, available:

• through wholesalers

• through your electrician/installer (BT Certified Expert)

• via stores

Component codes:

• 351300 – Audio/video module with wide-angle lens

• 354000 – Connection cable for functional modules

• 346993 – Sfera Interface

• 346050 – Power supply(s)

• Indoor station(s) of your choice, compatible with BTICINO
