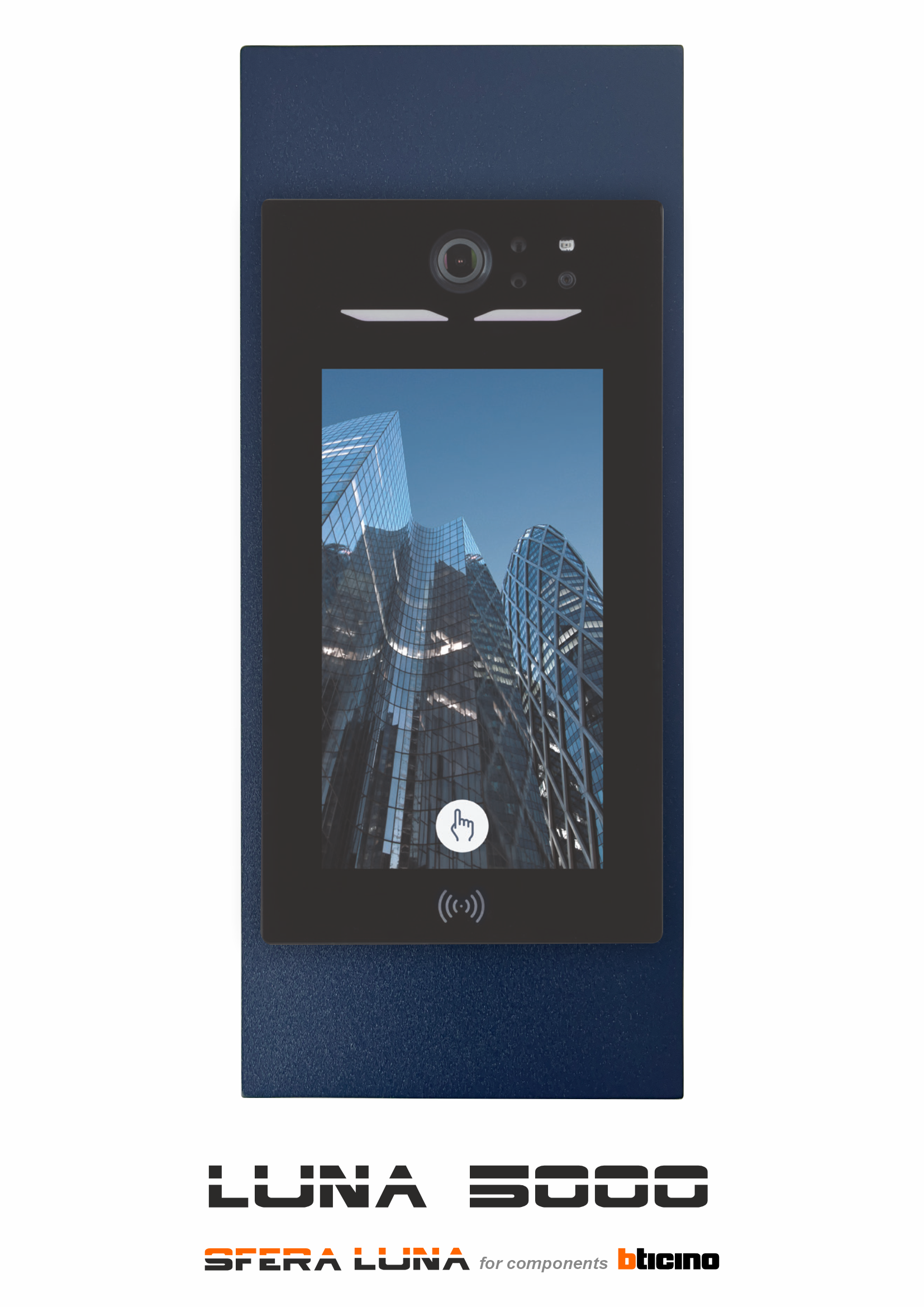

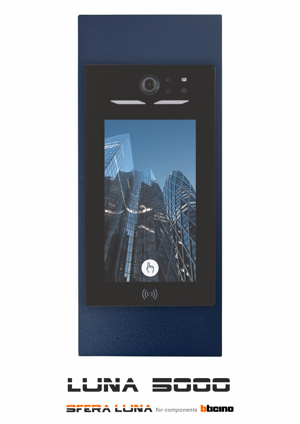

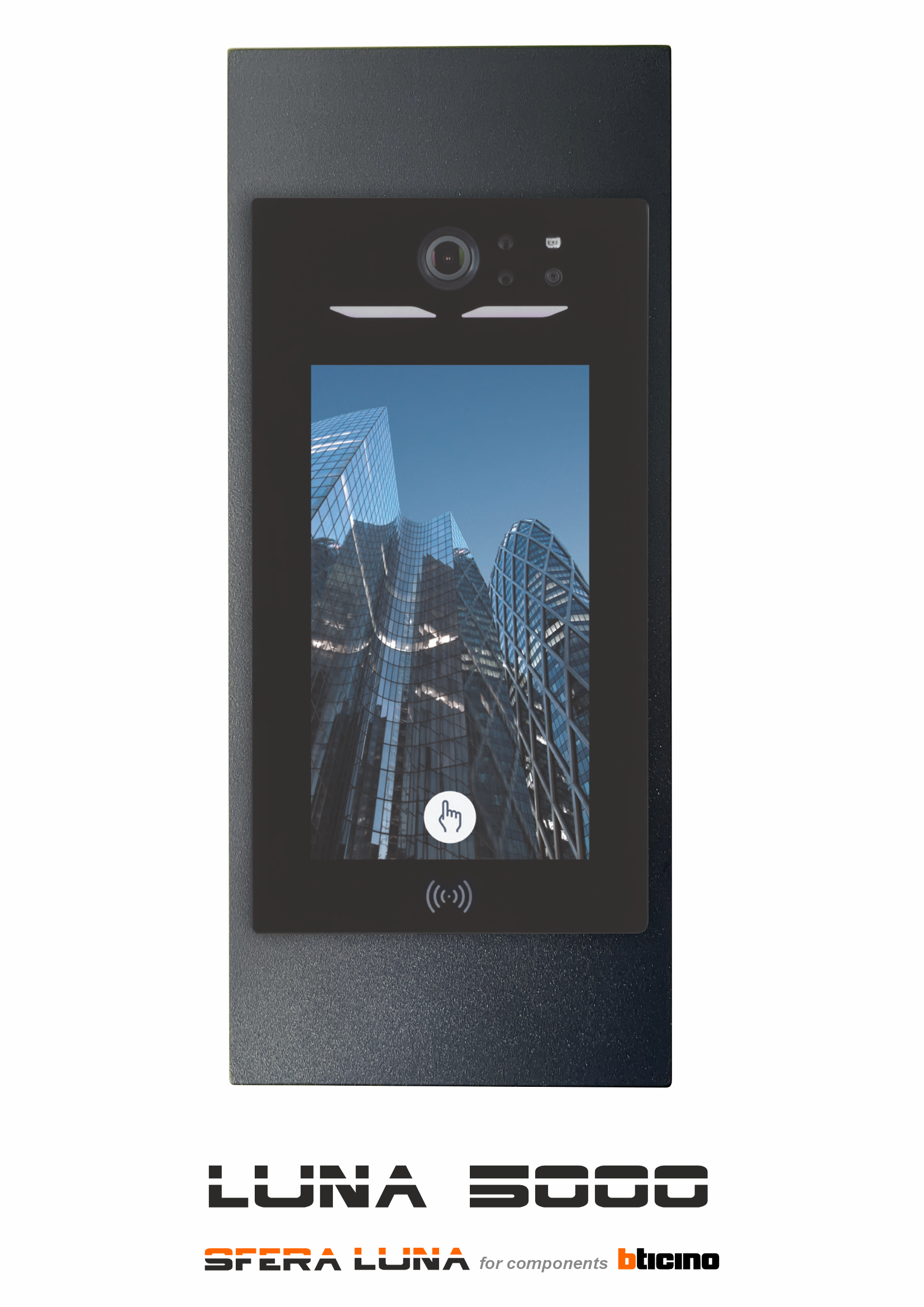

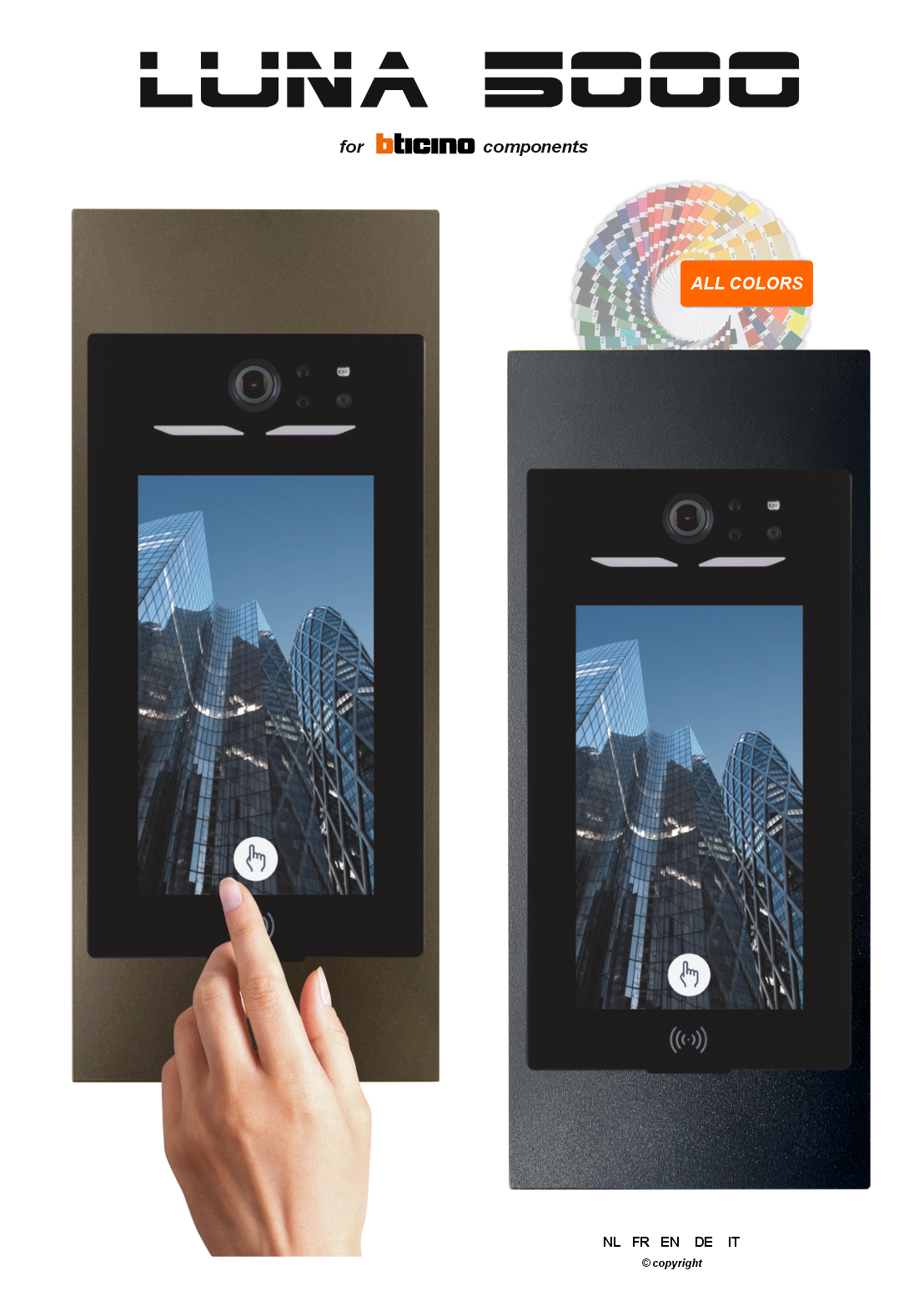

LUNA 5000 PREMIUM video front panel + base for module 345000 Bticino

LUNA 5000 for Display Module Ref. 345000 – Linea 5000

Sleek and timeless design for any residential environment: home, villa, multi-family residence, practice, apartment, or residence.

Features:

• Material & Design: 10 mm aluminum, high-end solid finish.

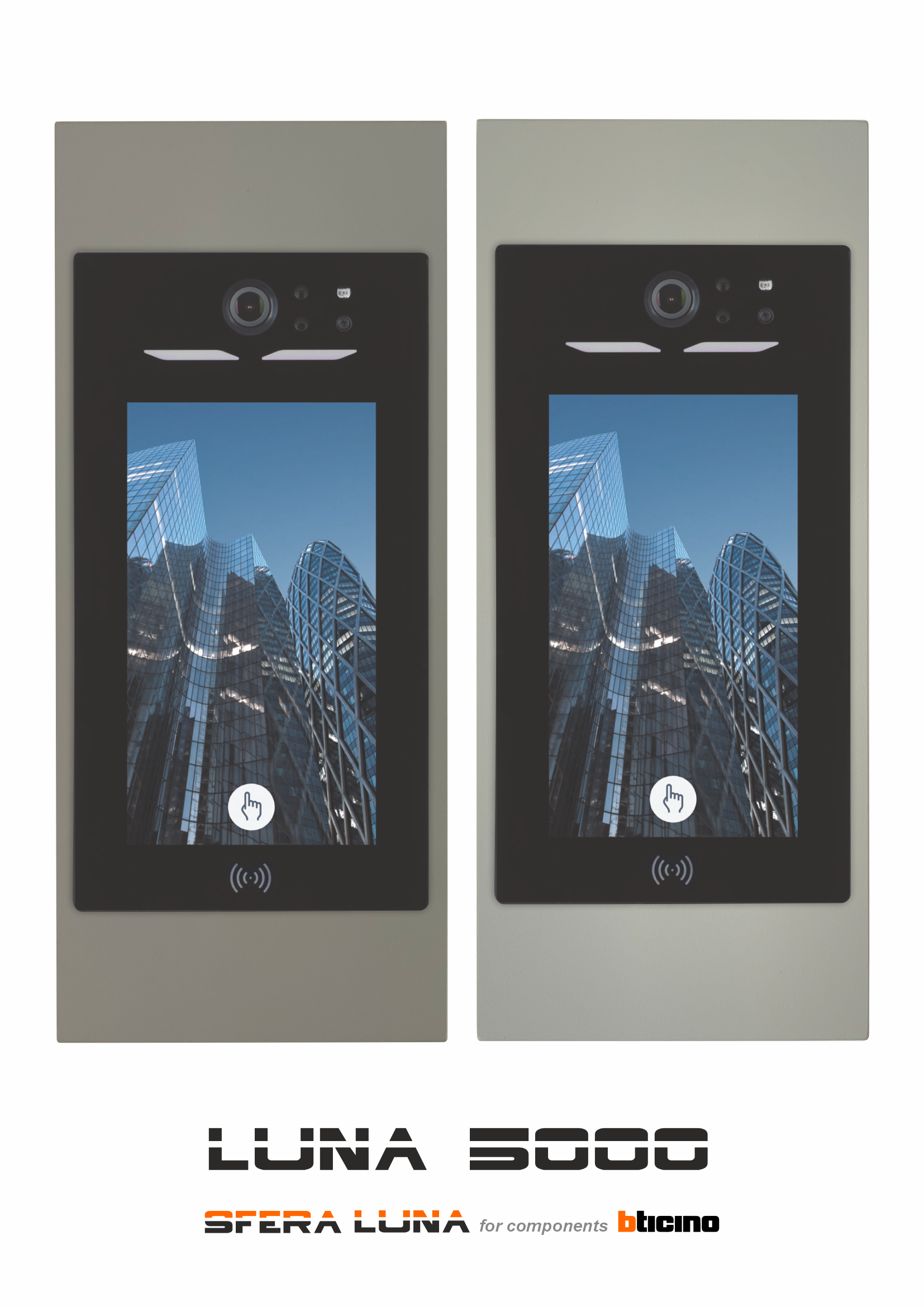

• Colors: Available in all RAL colors, Gold & Bronze (Axalta, Tiger, Oxyplast, Interpon, Sherman-Williams).

• Mounting: Central mounting system (simple blind mounting), vandal-resistant.

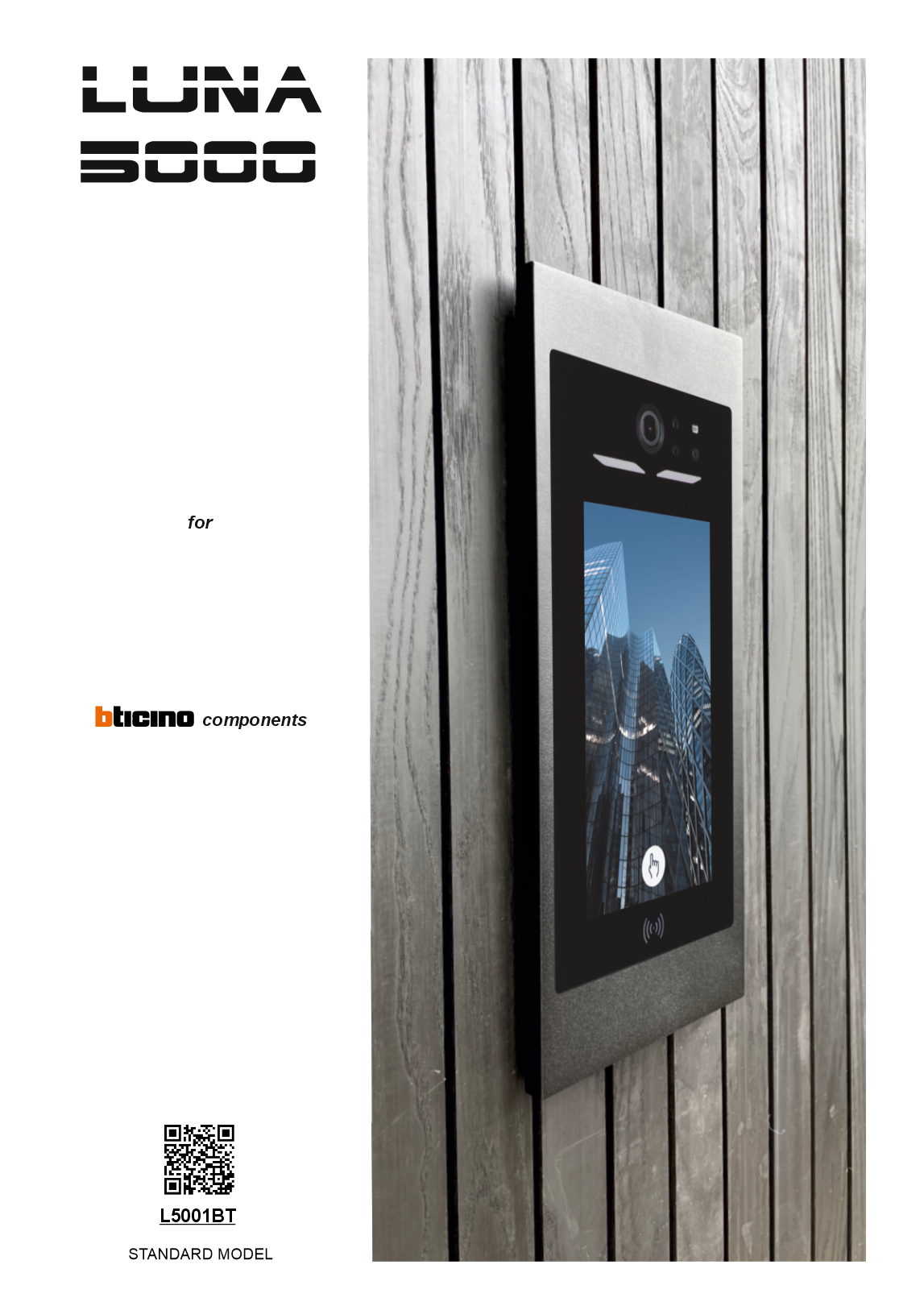

• Installation Options: On walls, gates, poles, mailboxes, etc.

• Flush & Surface Mounting: Compatible with standard Bticino flush-mount box 350030 and optionally available with a surface-mount box.

• Unique flush-mount system for gates and poles.

BTicino Display Module 345000 – Features:

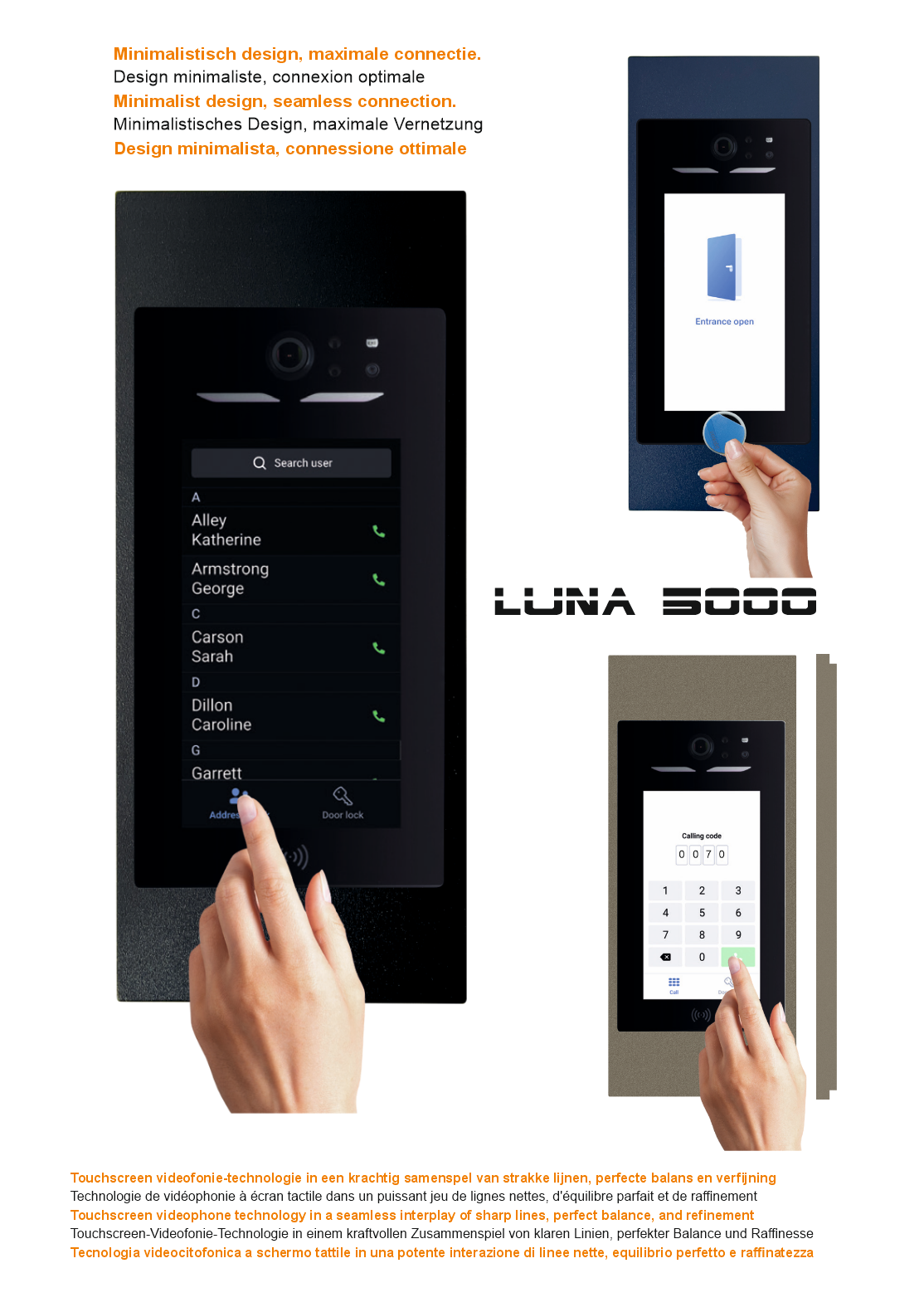

• 7” touchscreen with intuitive graphical interface.

• Sustainable: Front plates made of 60% recycled aluminum.

• High-quality wide-angle camera for optimal visibility.

• Energy-efficient: Proximity and brightness sensors activate only upon detection.

• Weatherproof & robust: IP65 waterproof, IK08 anti-vandal.

• BTicino 2-wire technology for easy installation.

• Access Options:

  • Via name, exact address, or code.

  • Via RFID key card.

  • Via Home + Project app on smartphone, iPhone, or PC.

• Compatible with hearing aids (inductive loop).

• Resident directory for quick selection.

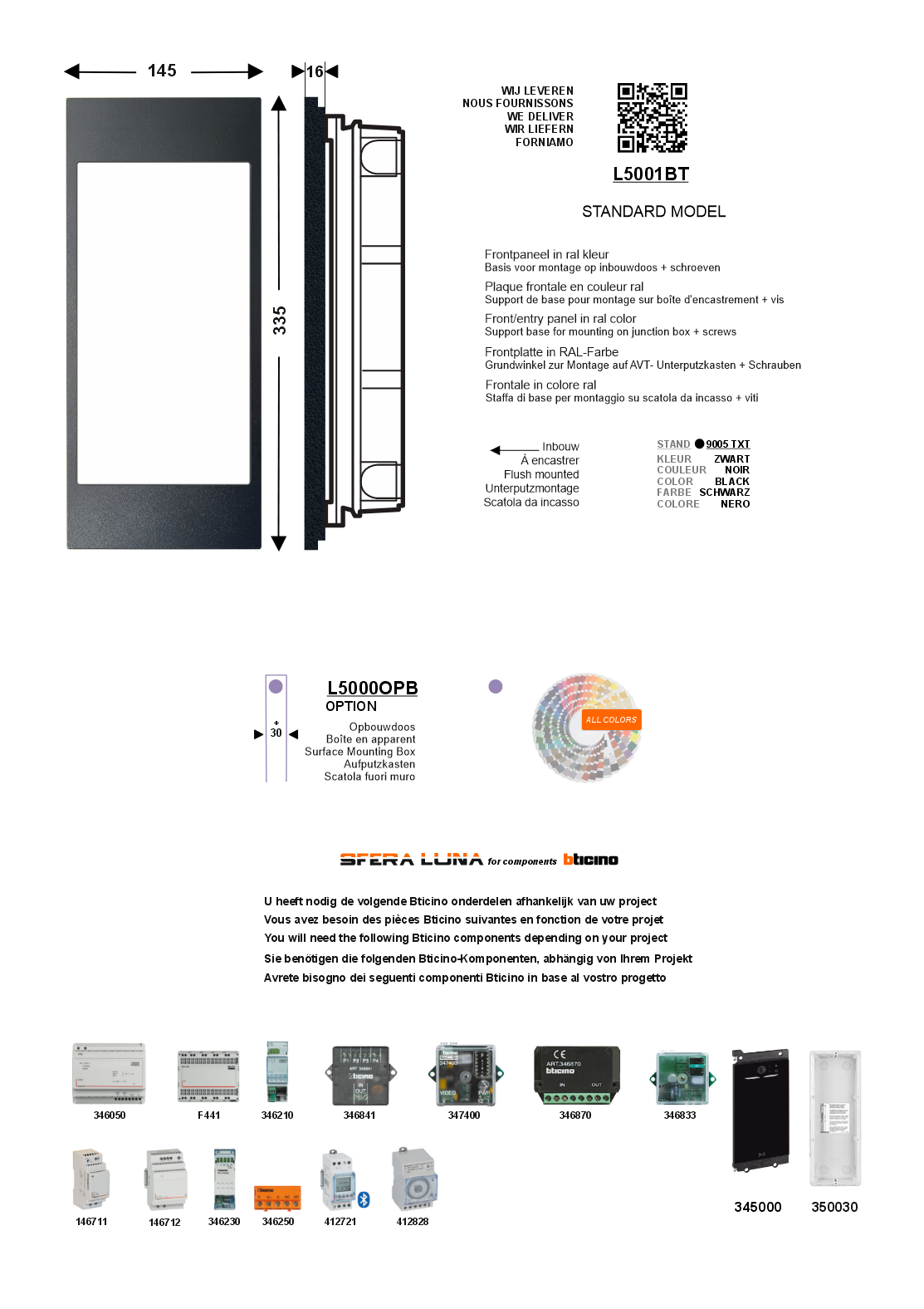

Delivery Information "We supply":

• Front panel in RAL color (IP68, IK08).

• Base bracket + mounting screws for flush-mount box 350020.

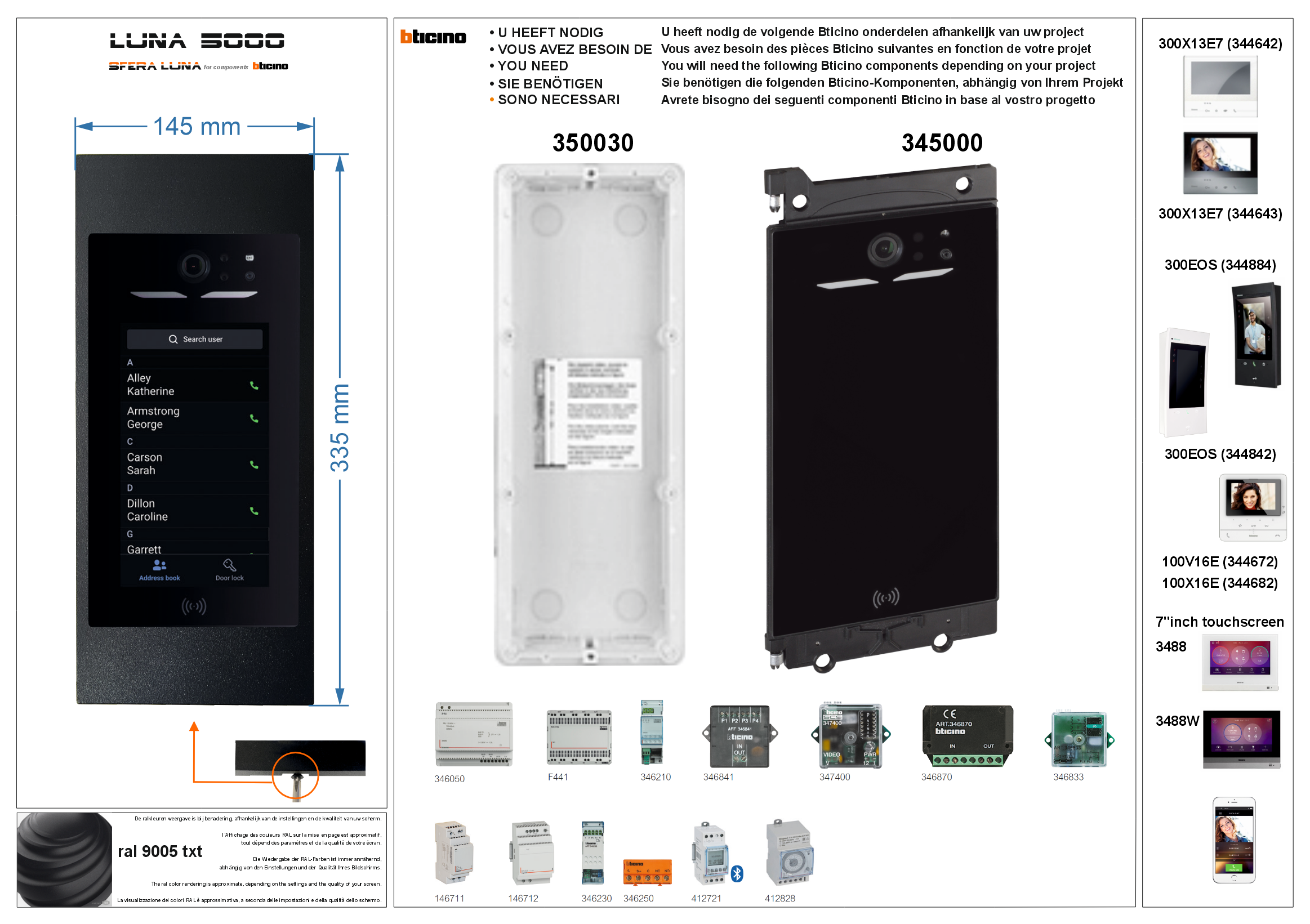

Required Components "You need" BTicino:

• 350030 – Flush-mount box (3 modules)

• 345000 – Display module (EAN: 8005543746073)

• 346050 – Power supply

• 306064 – Configuration set

• Compatible with all BTicino indoor units, recommended models:

  • 100X16E (344682)

  • 300X13E7 WiFi-3/4G (344642)

  • MyHOME_UP 7” Hometouch (3488)

  • 300EOS (344842)

Connections & Installation:

• Preferably use twisted BTicino cable REF 336904 or UTPS cable.

• Available through:

  • Wholesalers: Legrand Distributors

  • Installers/electricians: Bticino Partners

  • Direct sale: Bticino Stores

Sustainable Aluminum – The Green Metal:

• Infinitely recyclable without losing its unique properties.

• 95% energy savings when remelting.

• Environmentally friendly extraction: Nature recovers fully after 15 years.

Combine your color combinations and create a unique concept!
