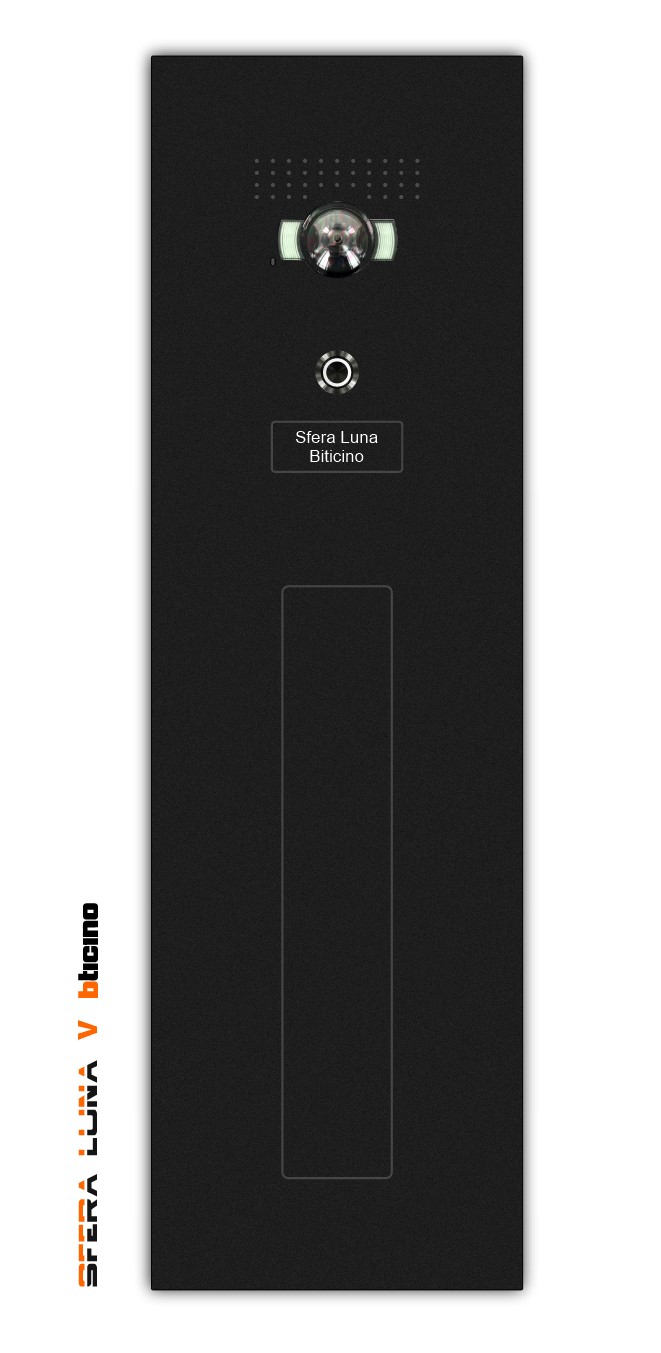

Video Parlofonie High-End Bticino SFERA LUNA+ with vertical letterbox flap

• Video entrance front panel with letterbox flap / throw-in flap vertical + name shield and.
• Outside dimensions: width 185mm x height 615 mm

• ---

  For Bticino outdoor station = 2 wire audio/video module 351300 wide angle ^{viewing angle: horizontal 135°- vertical 96° .}
• "All-In-One" for Bticino components.

• ---

  Sleek high-end design at the entrance to your home, apartment, gate or business ....

• ---

  Design front panel made of 10mm aluminum with solid letterbox flap thickness 5mm.
• Flap opening: width 50mm x height 295mm = box minipack small & medium post

• Inward rotating letterbox flap, waterproof.
• Standard mounting
• The name tag can be easily changed with a unique, invisible mounting system.
• The name tag can be personalized when ordering or later.
• Call pushbutton standard black or stainless steel (also available led illuminated)
• Central mounting system front panel (easy blind mounting).
• Vandalism resistant. (IK 80)
• Installation possibilities: on walls, gates, columns, mailboxes, etc.
• Easy installation in narrow surroundings.
• Unique built-in system for built-in gates, columns, ...
• Level mounting possible via oblong holes.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

Dimensions: width 185 mm x height 615 mm

We supply:

1. Front panel in ral colour. (IK08 -IP54)
2. Support base for mounting on junction box 350020 Bticino (pre-assembled)
3. Mounting method: recessed (stucco)
4. 351305pkm - plexi for module 351300
5. 1 call pushbutton (IK08 - IP67)
6. 1 name tag, interchangeable (IK08 - IP67)
7. Letterbox flap with opening: width 50mm x height 295 mm

You need:

1. 351300 - Audio/video module with wide-angle lens
2. 354000 - Videoparlofonie connection cable for functional modules
3. 346993 - Interface Sfera
4. 346050 - Power supply
5. Compatible with all BTicino Indoor units: 100X16E  or Classe 300EOS (344842)
6. Preferably use twisted pair cable Bticino REF 336904 OR UTPS for the connection!

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made

Sfera Luna (partner of the Legrand Group), copyright model.
