SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino

Product Code : PL-0005-5-BT- EAN: 5430003616062

SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino
SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino
SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino
SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino
SFERA LUNA+5 Call Buttons Video Parlofonie High-End Bticino
Open orderform Ask a quote

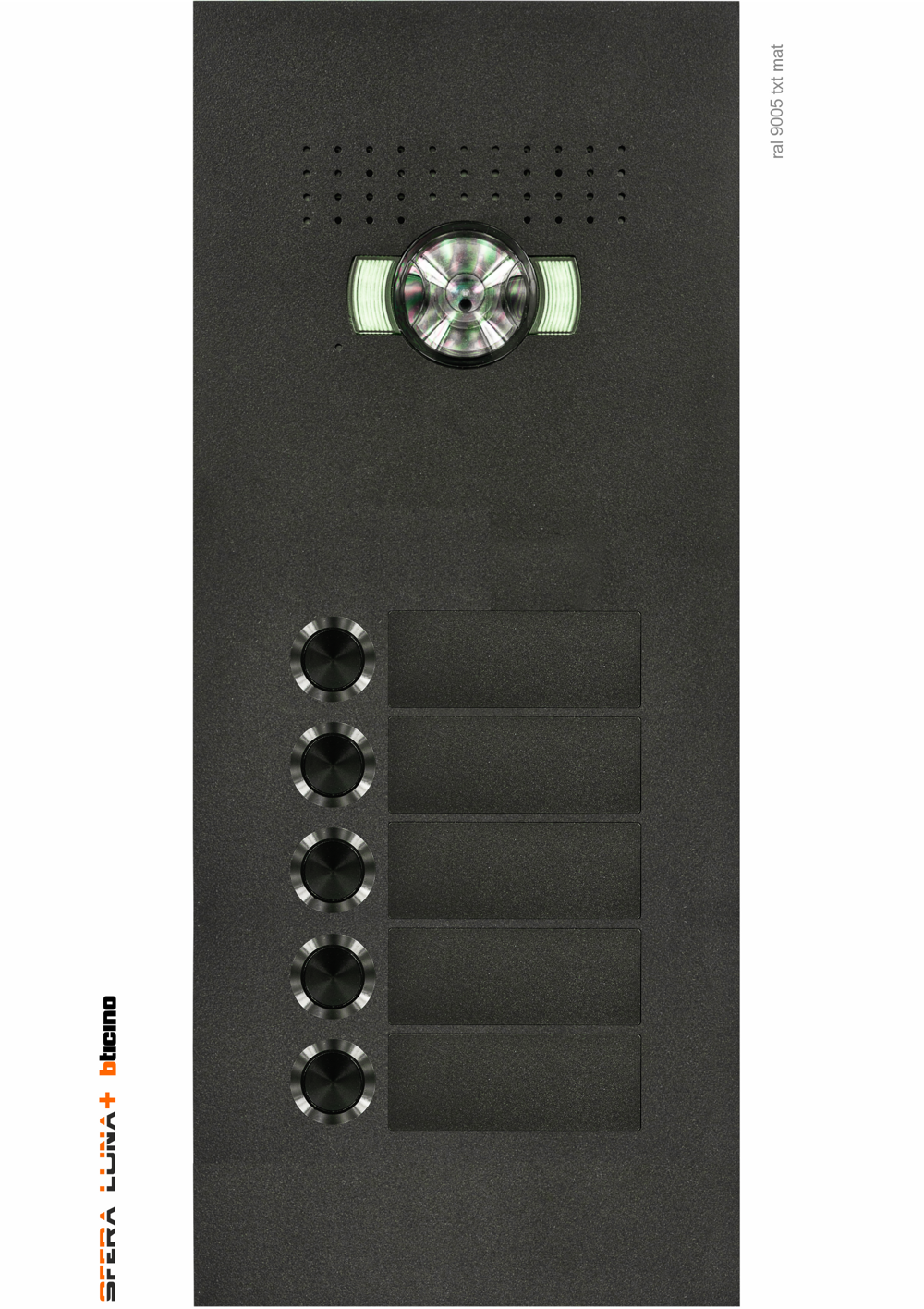

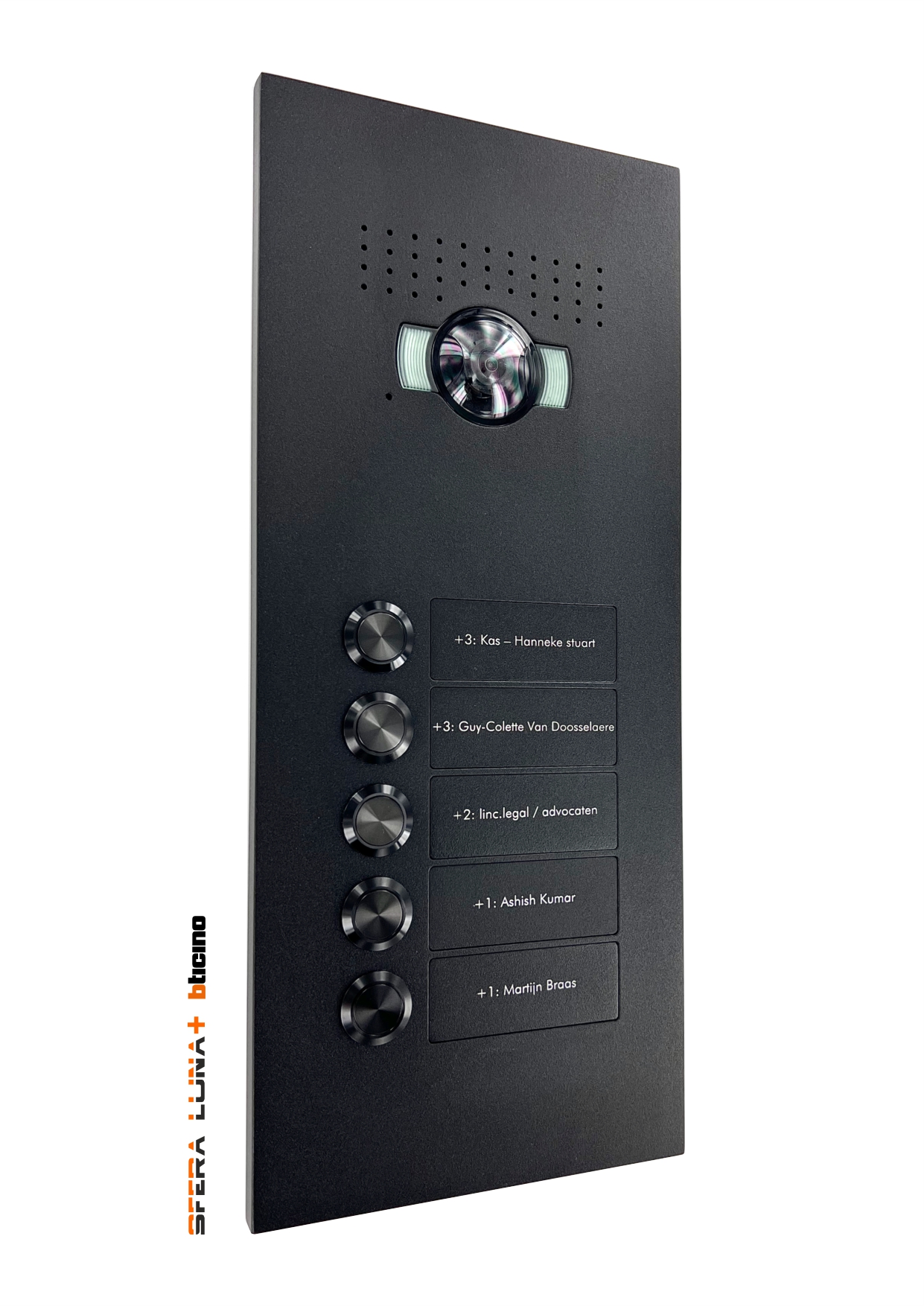

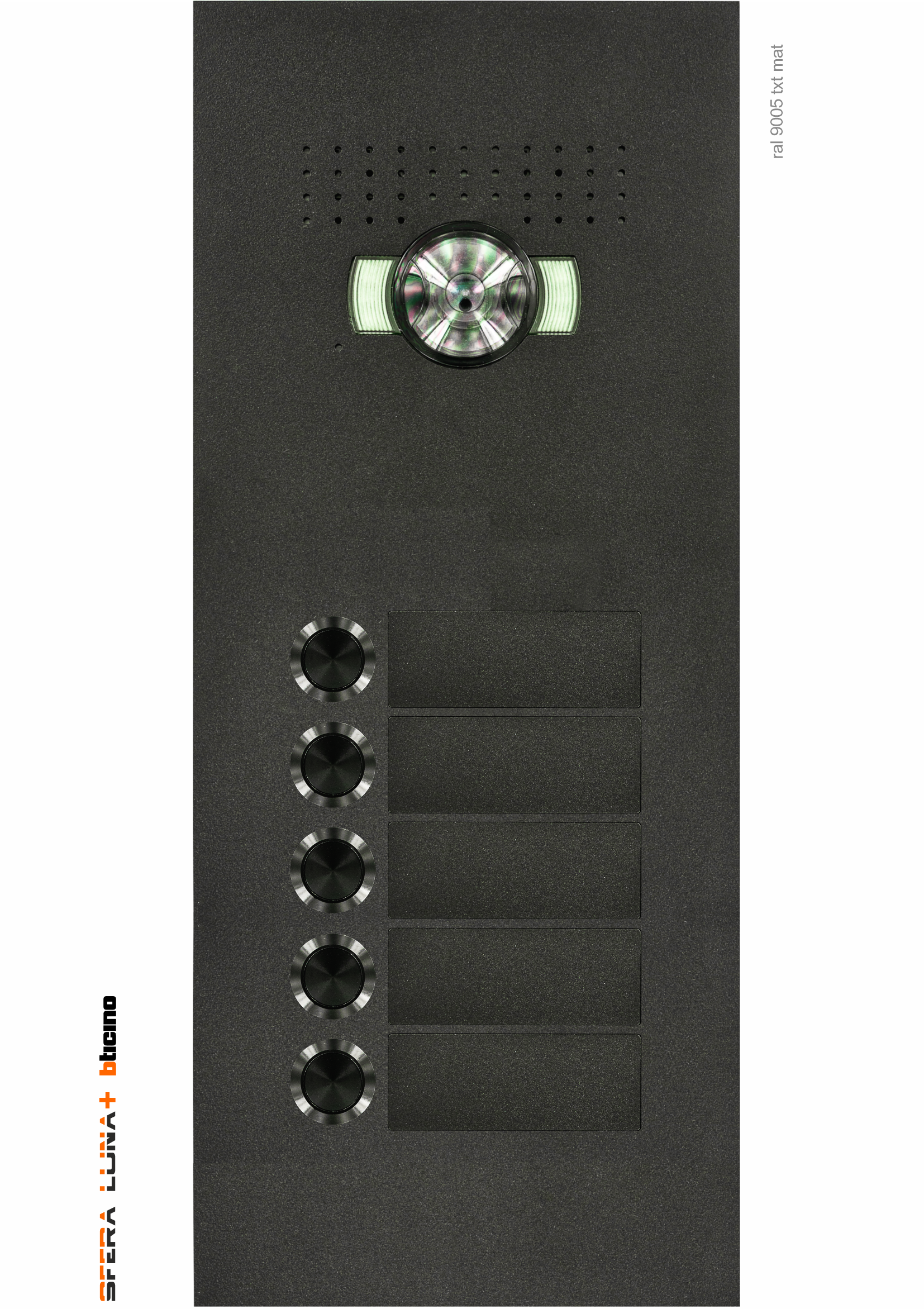

  1. Videophone front entry panel SFERA LUNA+5 for Biticino wide angle audio/video 351300 or 351500.
  2. Sleek high-end design at the entrance of your residence / apartment ...
  3. A five way call button system, vandal resistan
  4. Standard installation on Bticino 350030 flush-mounted box.
  5. The front panels are available in all ral colors, matching the color of your residence or project

  • 5 doorbell buttons

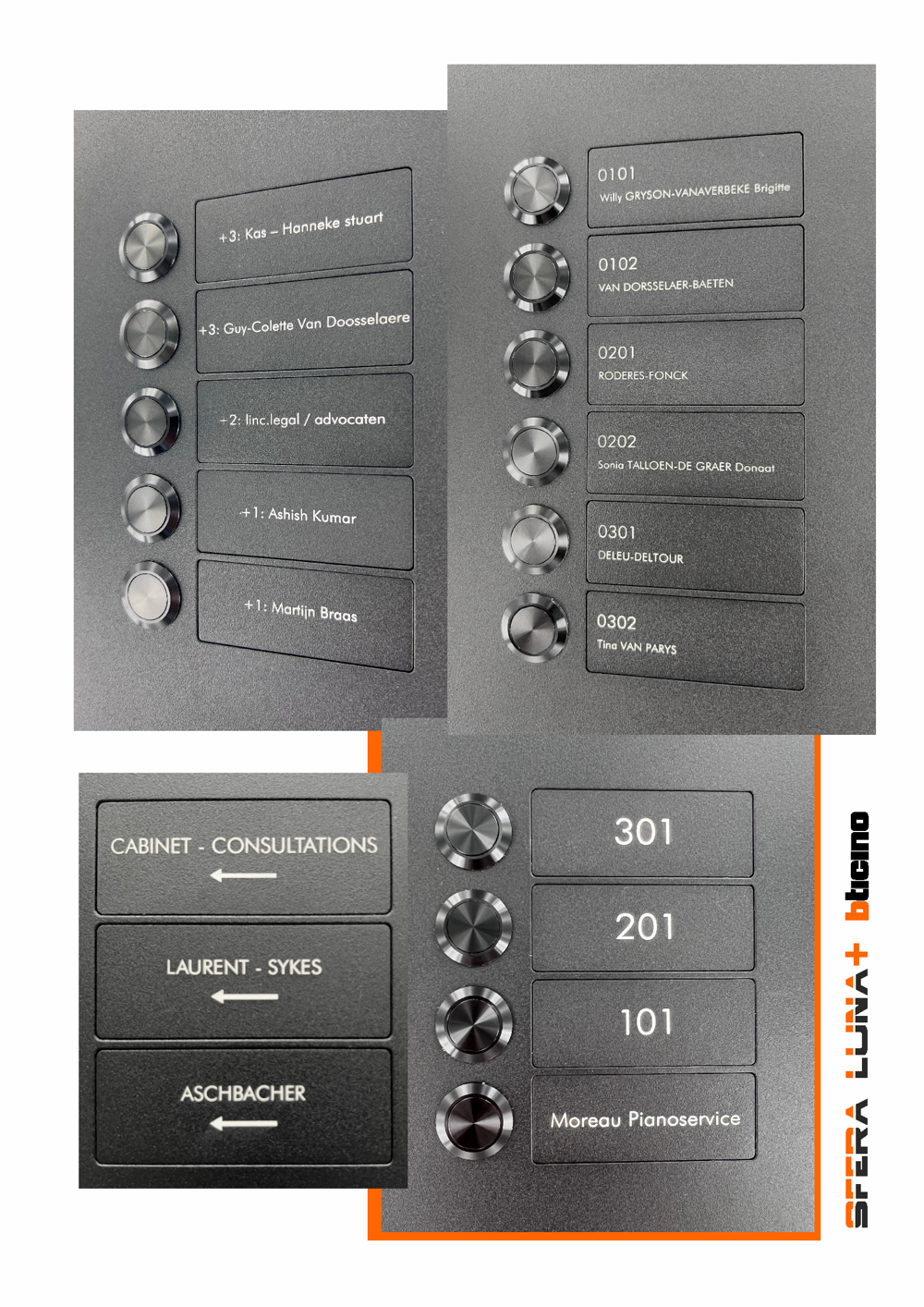

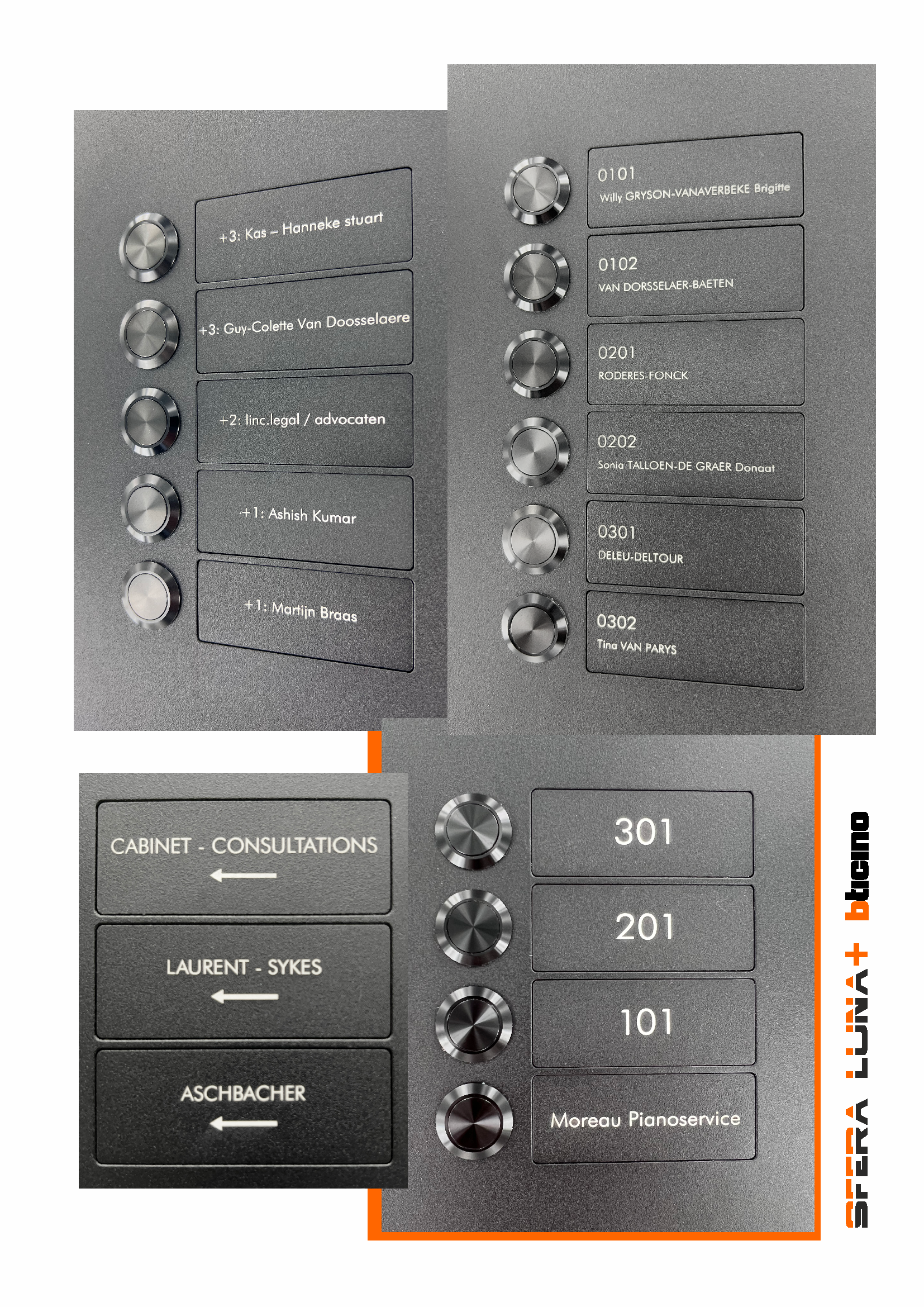

  • 5 interchangeable name tags, easy mounting with unique invisible mounting system
  • Produced in 10mm aluminium, High End, Solid finishing.
  • Central mounting system front panel. (Simple blind mounting)
  • Vandalism resistant.  (IP54 - IK08)
  • Installation possibilities: on walls, gates, poles, mailboxes, etc ...
  • Installation possibilities in mailboxes ... .
  • Removable nameplate can be personalized or not.
  • Easy installation in narrow environments
  • Unique flush-mounting system for recessed gates, poles, etc. .....
  • Model flush mounted on standard box Bticino 350030
  • Positionable with oblong holes.
  • Also available with surface-mounted module.




 SFERA LUNA DOCUMENTS

ralkleuren plexi-view All Ral colours available

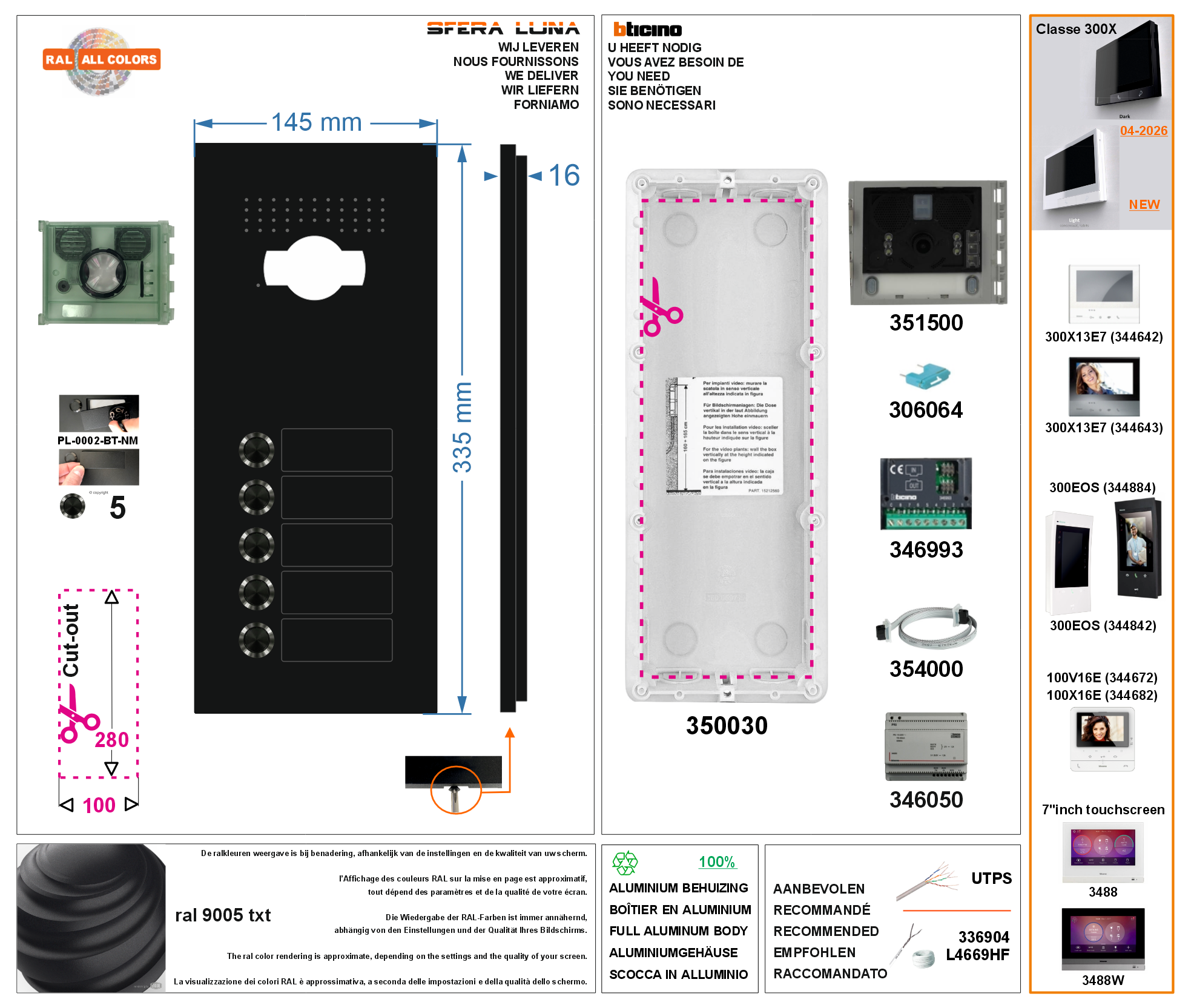

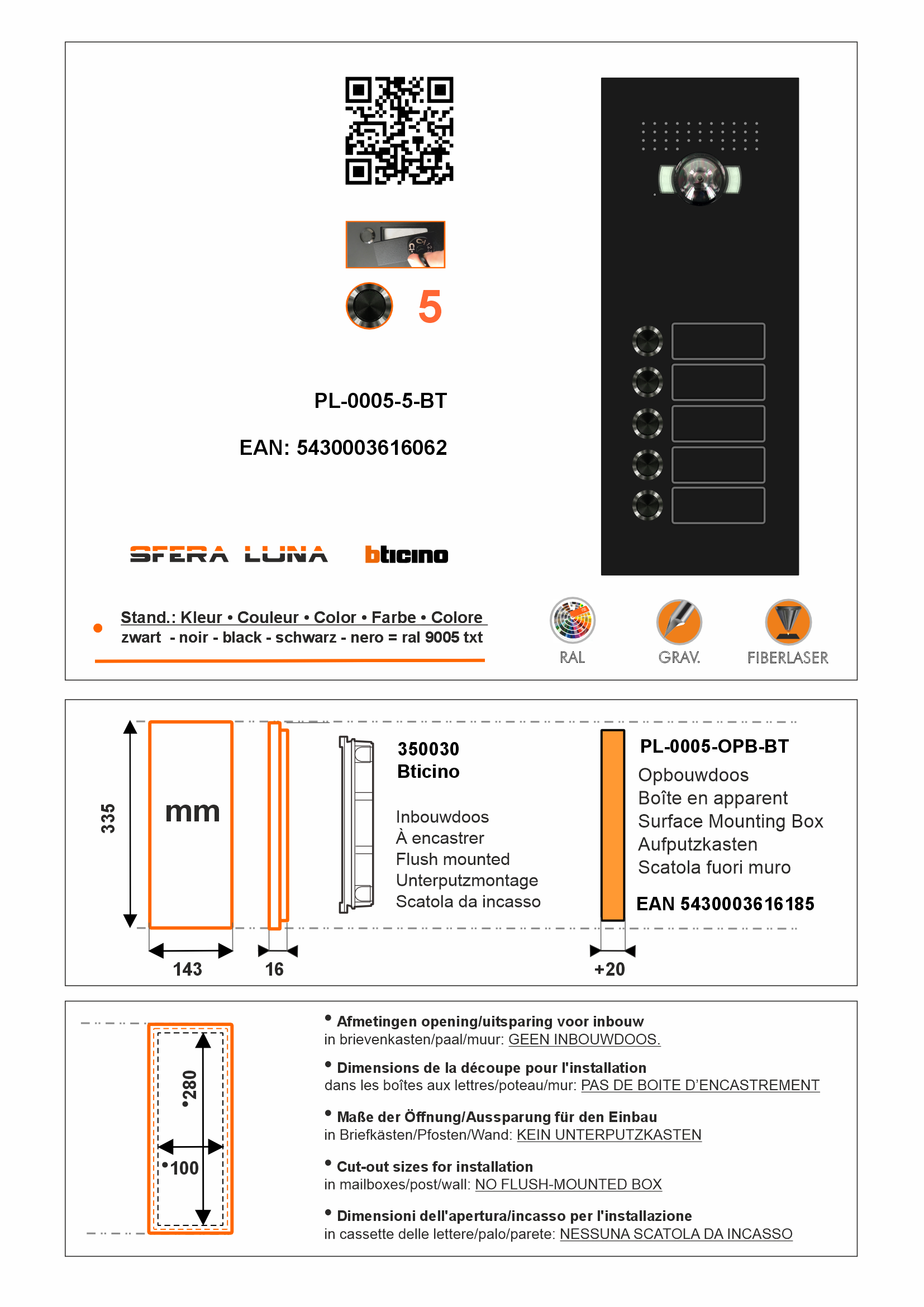

afmetingen plexi-view Dimensions : width 143mm x height 335mm


We supply :

  1. Front panel entrance in ral color.  (IP54 - IK08)
  2. Modular panel frame + screws for installation on flush-mounting box 350030
  3. 351305pkm - plexiglas for module 351300 = 351500

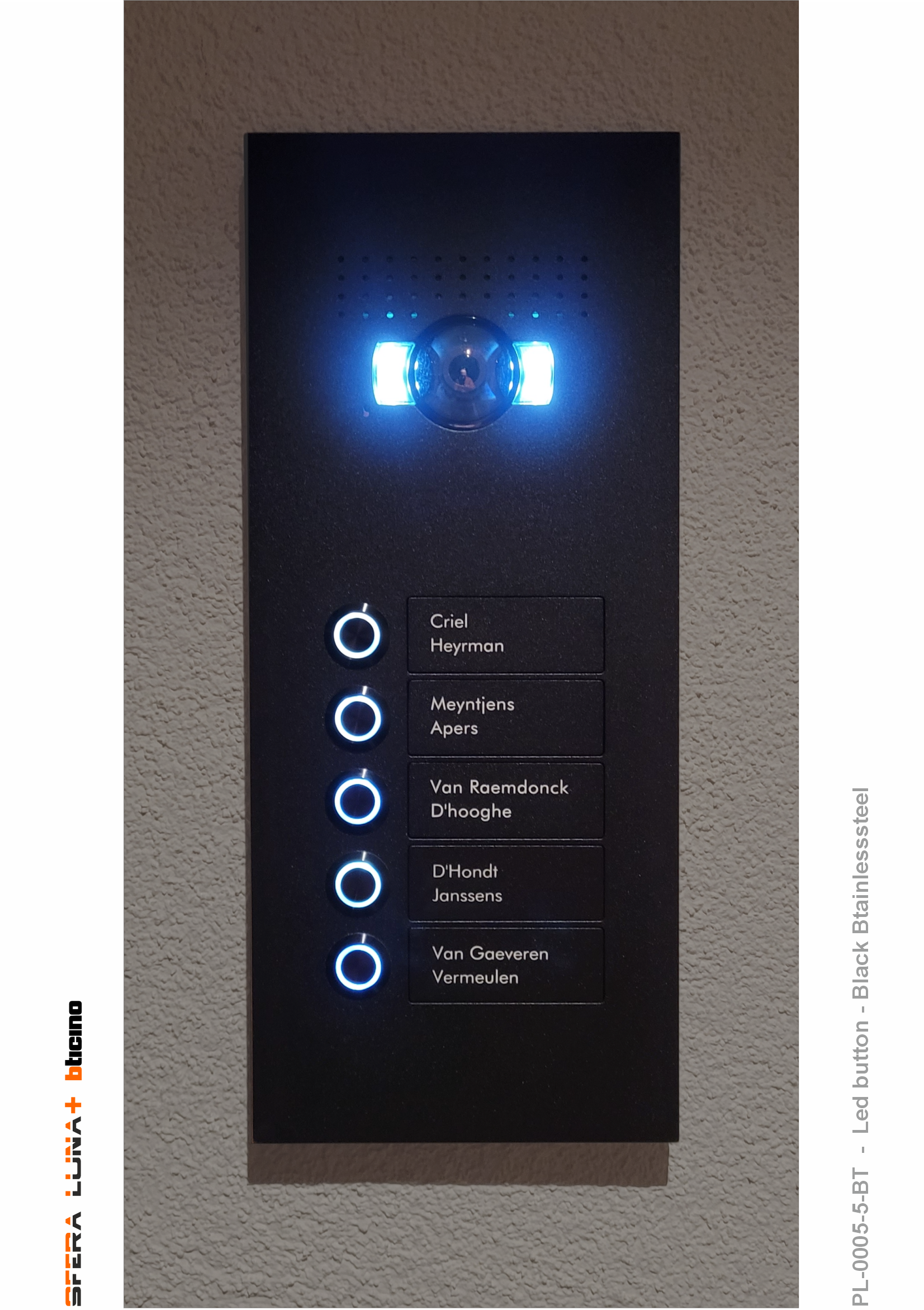

  4. 5 pushbuttons (integrated) black stainless steel, stainless steel or led  (IP67 - IK08)
  5. 5 interchangeable name tags  (IP68)
  6. Tool for mounting interchangeable name tags

You need Bticino :

  1. 350030 - Flush-mounting box 3 modules
  2. 354000 - Videoparlofonie connection cable for functional modules
  3. 351300 or 351500 - Audio/video module with wide-angle lens
  4. 346993 - Interface Sfera (up to 8 call buttons possible)
  5. 346050 - Power supply
  6. 306064 - Config. Set
  7. Preferably use REF 336904 twisted cable or UTPS or UTPS for the connection
  8. Compatible with all Bticino indoor units: Class 100X16E (344682) Class 300 X13E7 wifi-3/4G (344642) or MyHOME_UP 7" Hometouch (3488) or Classe 300EOS (344842)


  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.


Sfera Luna (partner of the Legrand Group), copyright model.
