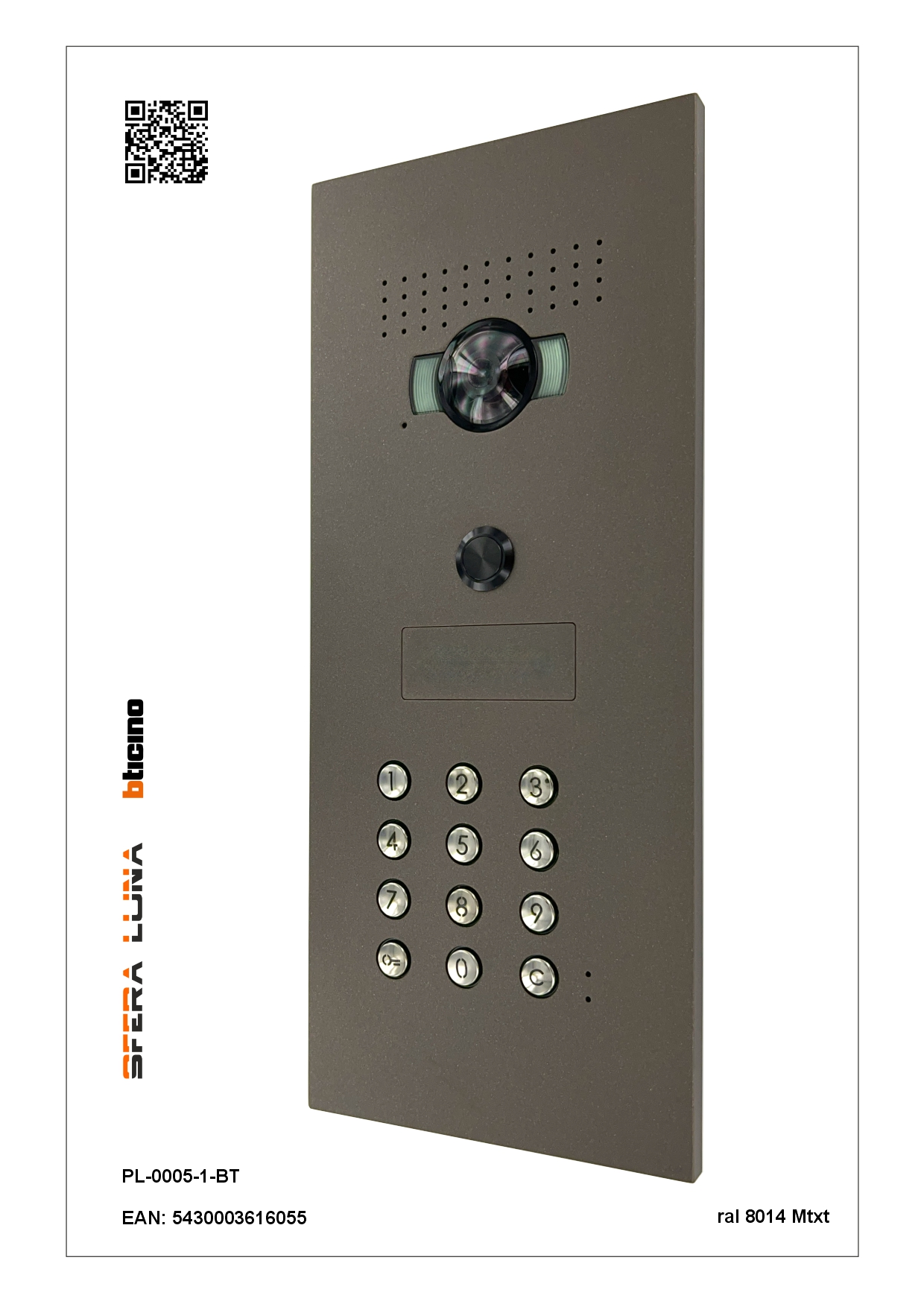

Video Parlofonie High-End Bticino SFERA LUNA+1 code keyboard

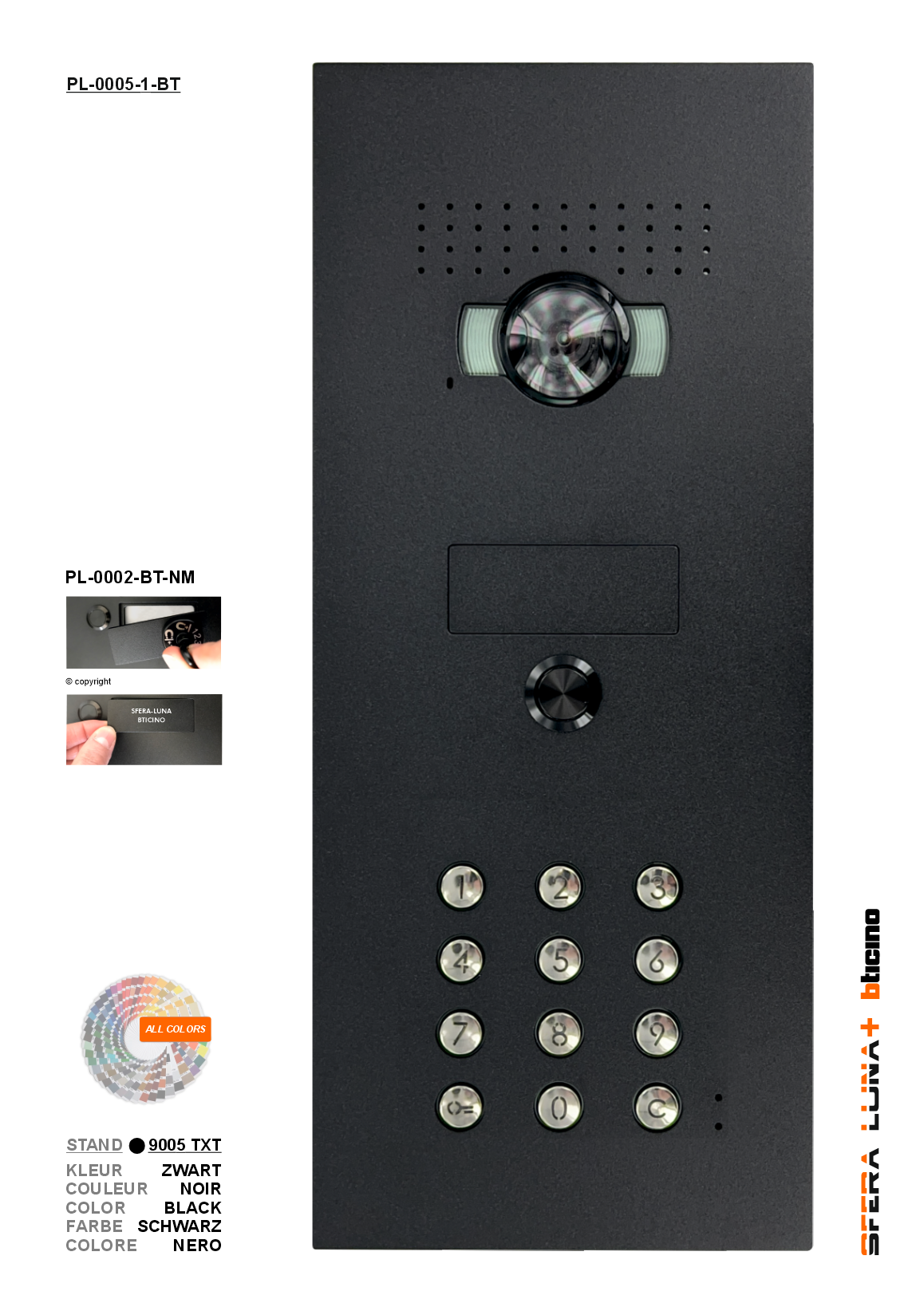

1. SFERA LUNA+ video entrace front panel with 1 removable name tag

2. ---

   For Biticino wide angle video/audio 351300 or 351500 viewing angle: horizontal 135°- vertical 96°  + keypad 353000 led illuminated

3. ---

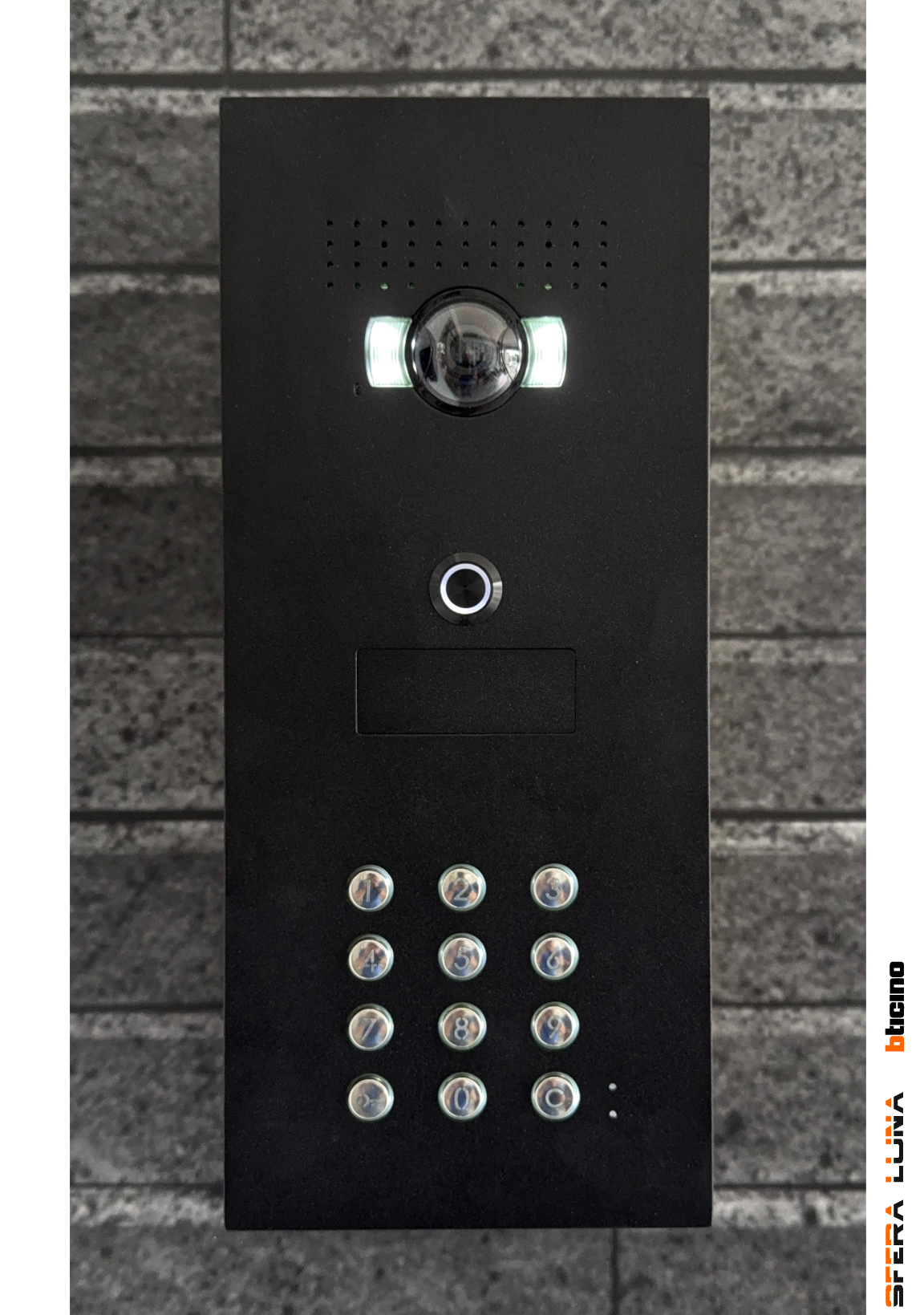

   Sleek high-end design at the entrance, vandal resistant ...

4. ---

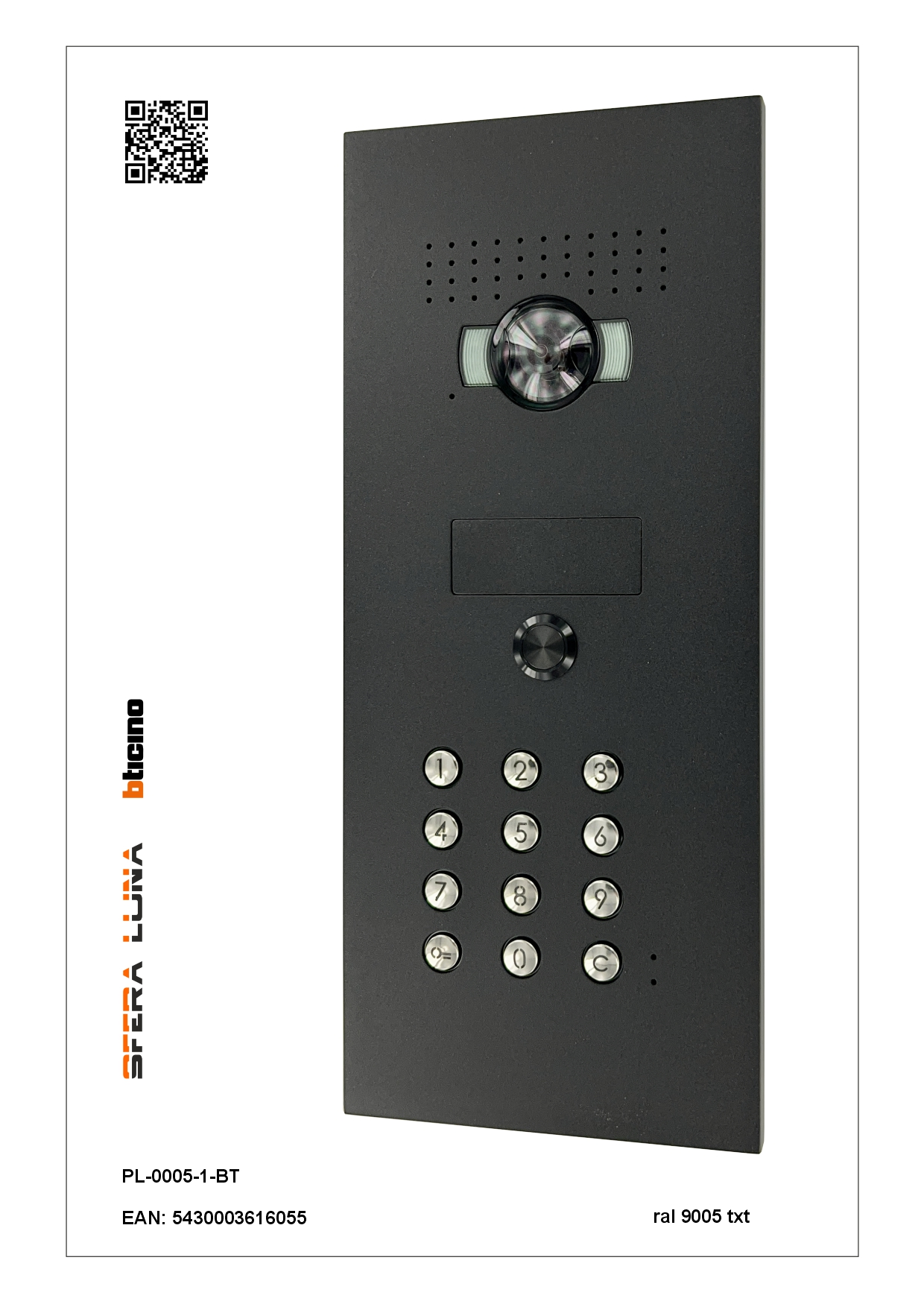

   Design front panel as standard in colour black ral 9005 fine texture.

5. ---

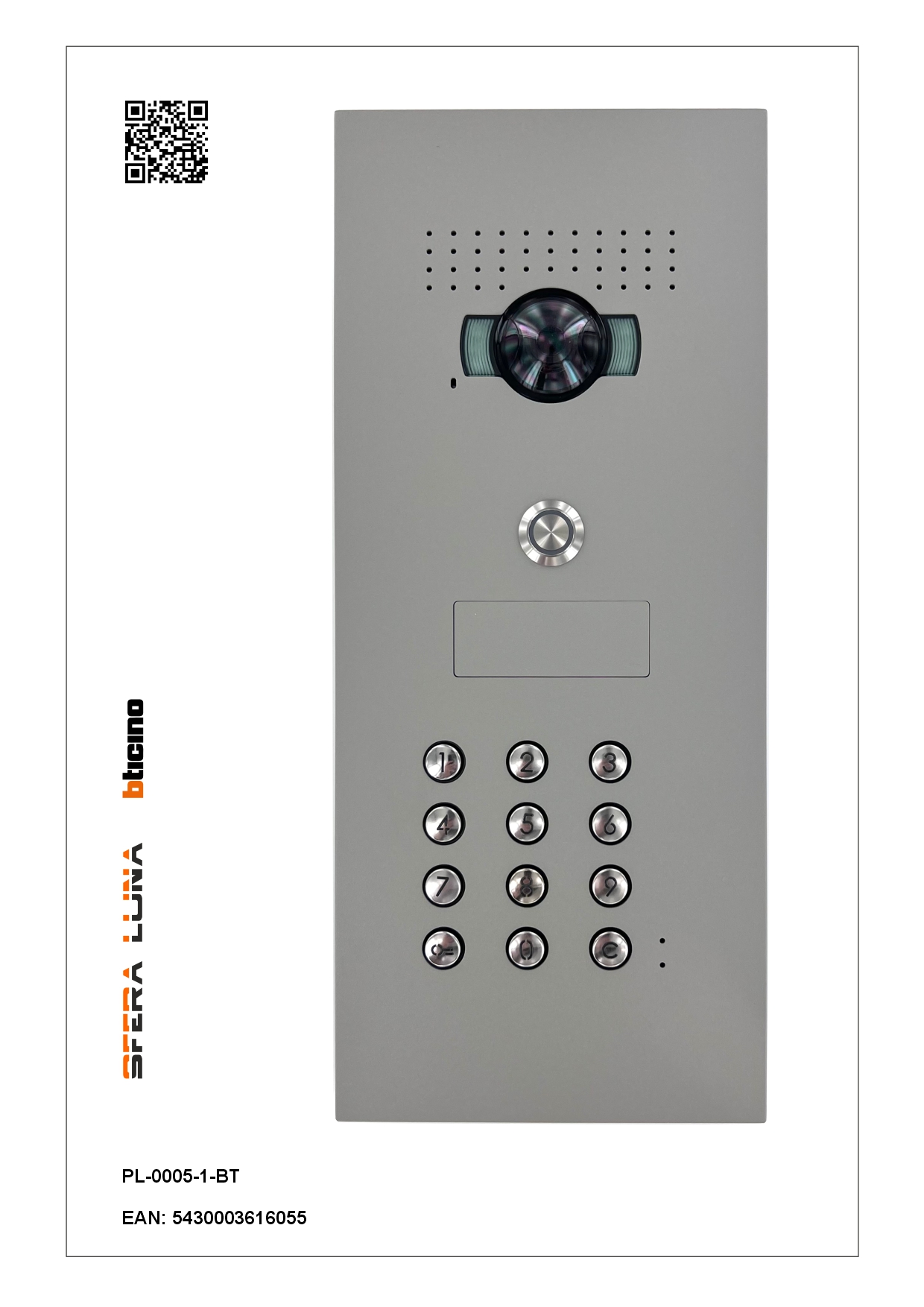

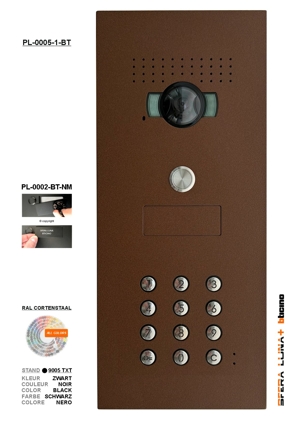

   The front panels are available in all ral colors, matching the color of your residence or project.

6. ---

   Interchangeable name plat/name shield: always a claen end uniform look to any residence or home.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....
• Model flush mounting on standard box Bticino 350030

• Also available with surface-mounted module.

 SFERA LUNA FOLDERS

All ral coulours available

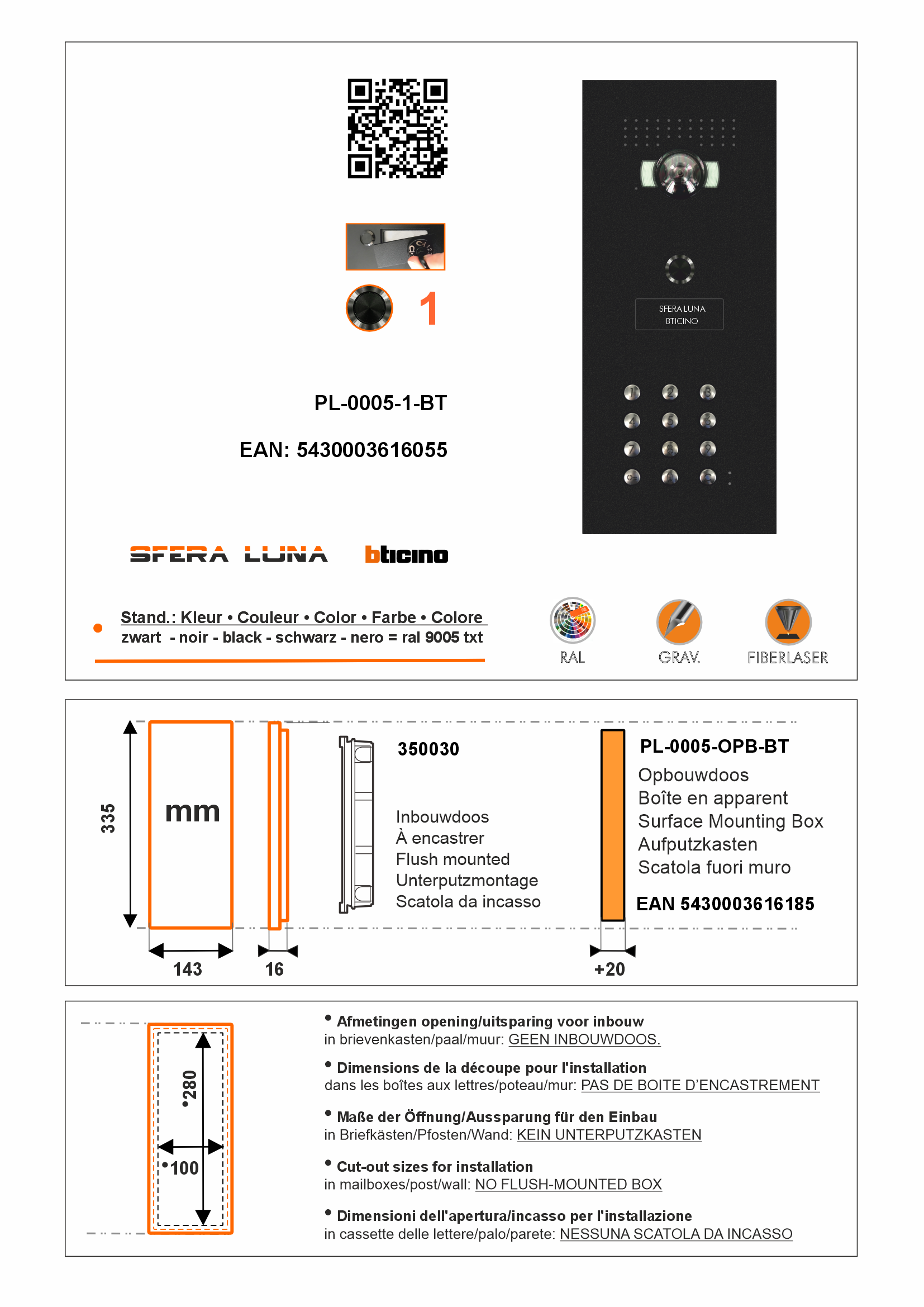

Afmetingen: br.143mm x h.335mm

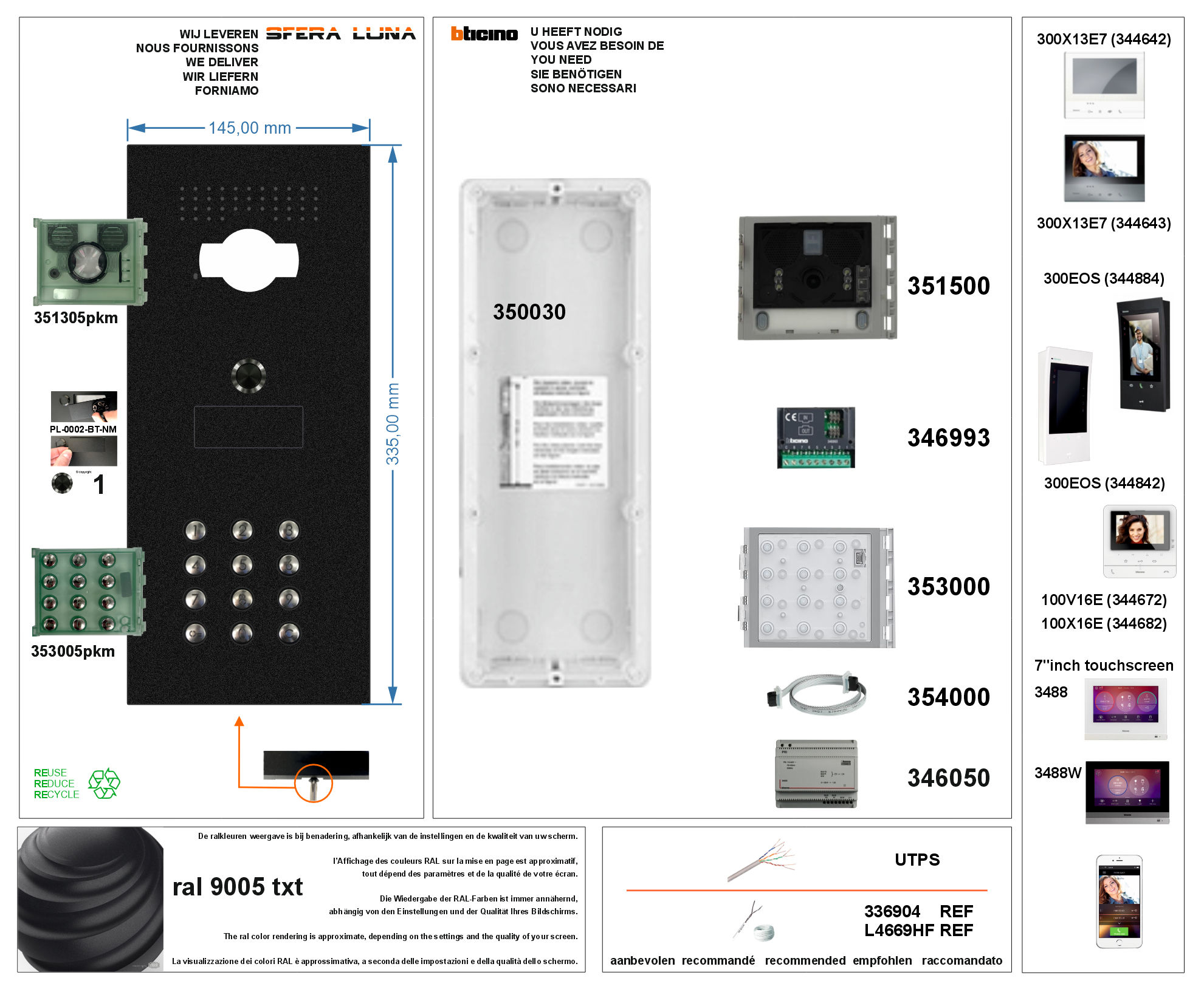

We supply:

1. Front panel entrance in ral colour.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module Audio/video with wide-angle lens  351500 = 351500
4. 353005pkm - plexi front panel code keyboard
5. 1 push button (integrated) black stainless steel, stainless steel or led  (I67 - IK08)
6. 1 interchangeable name tag (IP68)
7. Tool for mounting changeable name tag

You need components Bticino:

1. 350030 - Flush-mounting box 3 modules
2. 354000 - Videoparlofonie connection cable for functional modules
3. 351300 or 351500 - Audio/video module with wide-angle lens

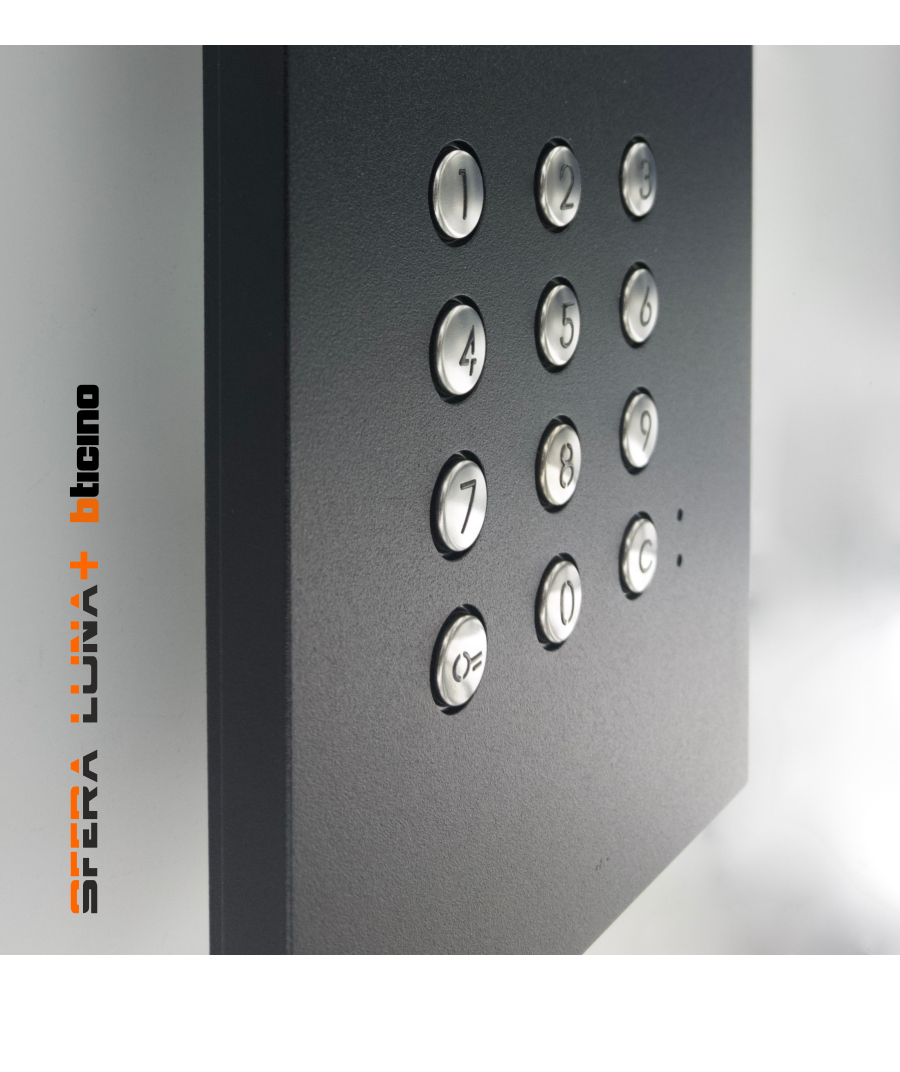

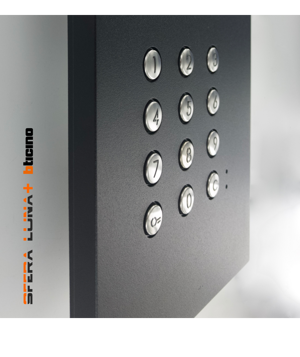

4. 353000 - Keypad LED illuminated
5. 346993 - Interface Sfera
6. 346050 - Power supply
7. Compatible with ALL BTicino Indoor units: Class 100X16E  or Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch (3488)
8. Preferably use REF 336904 twisted cable for the connection or UTPS.

Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.
