Video Parlofonie High-End BTICINO SFERA LUNA PURE name

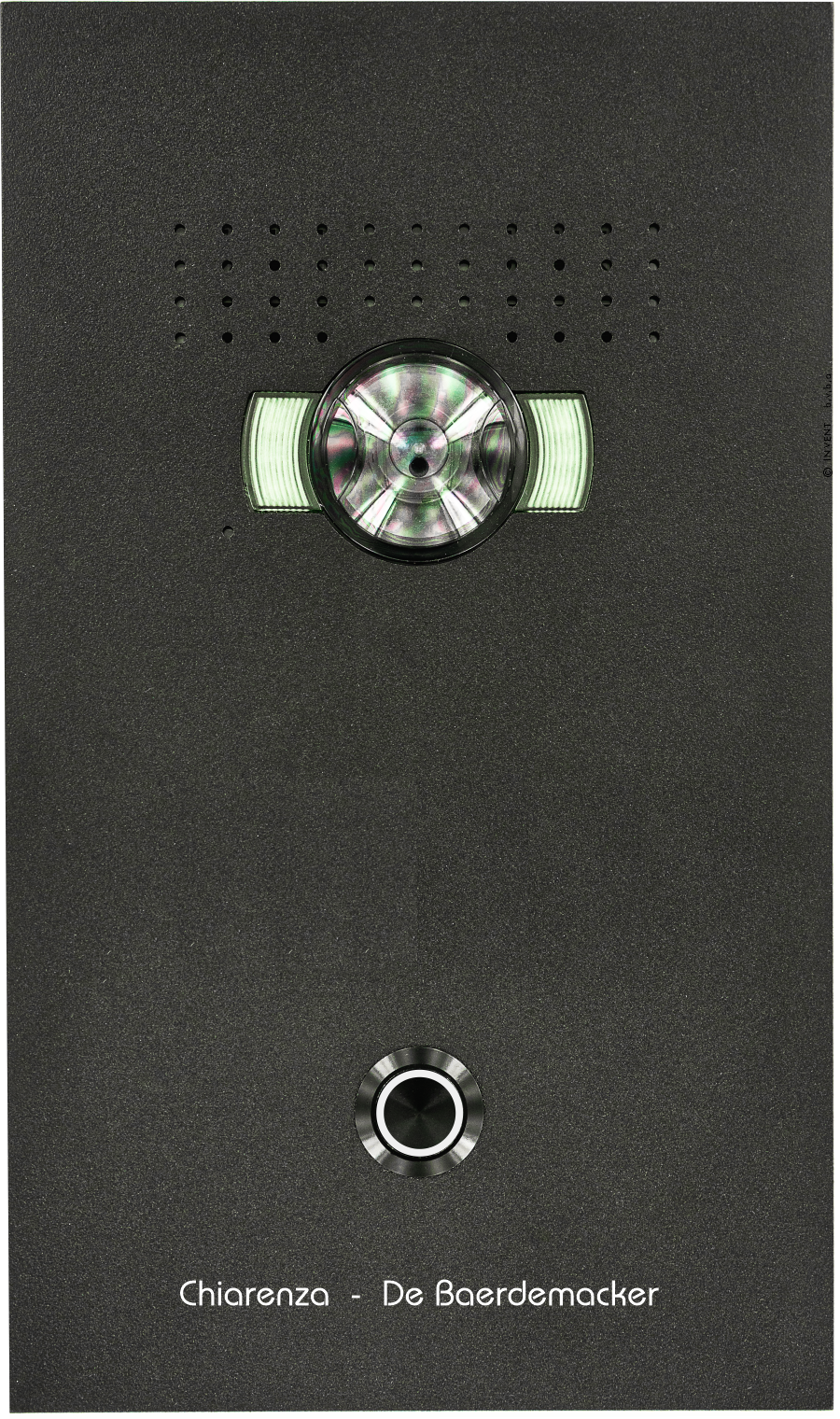

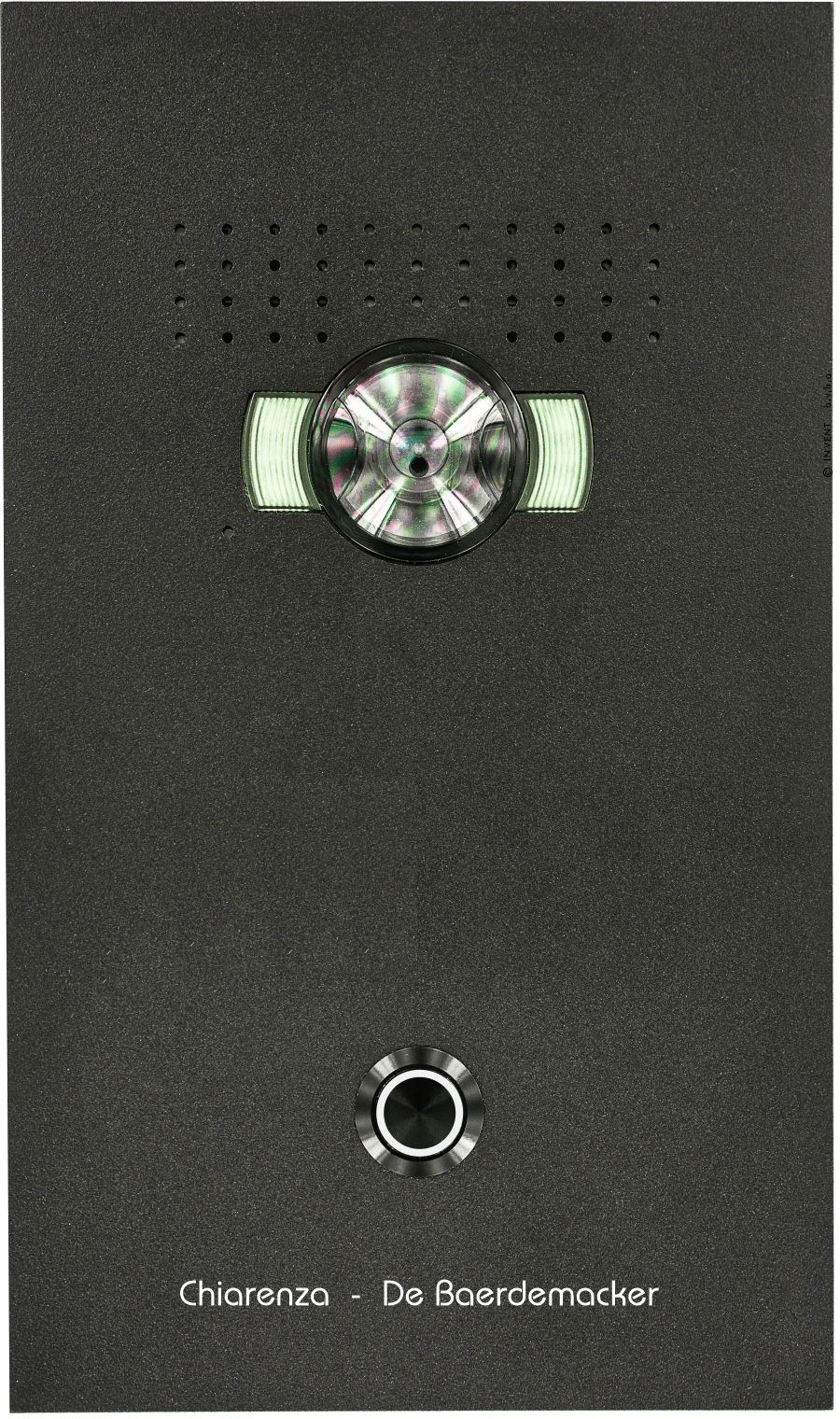

Videophone front panel SFERA LUNA PURE for Biticino entry panel 351300.

Standard installation on Bticino 350020 flush-mounting box.

These front panels are available in all ral colors according with the color of your residence or project.

Name is engraved & colored in ral color of your choice.

• Made in 10mm aluminum, High End, solid finish.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Names engraved and UV-resistant lacquered
• Easy installation in narrow environments.
• Flush mounting on standard box Legrand 350020
• Also available with surface-mounted module.

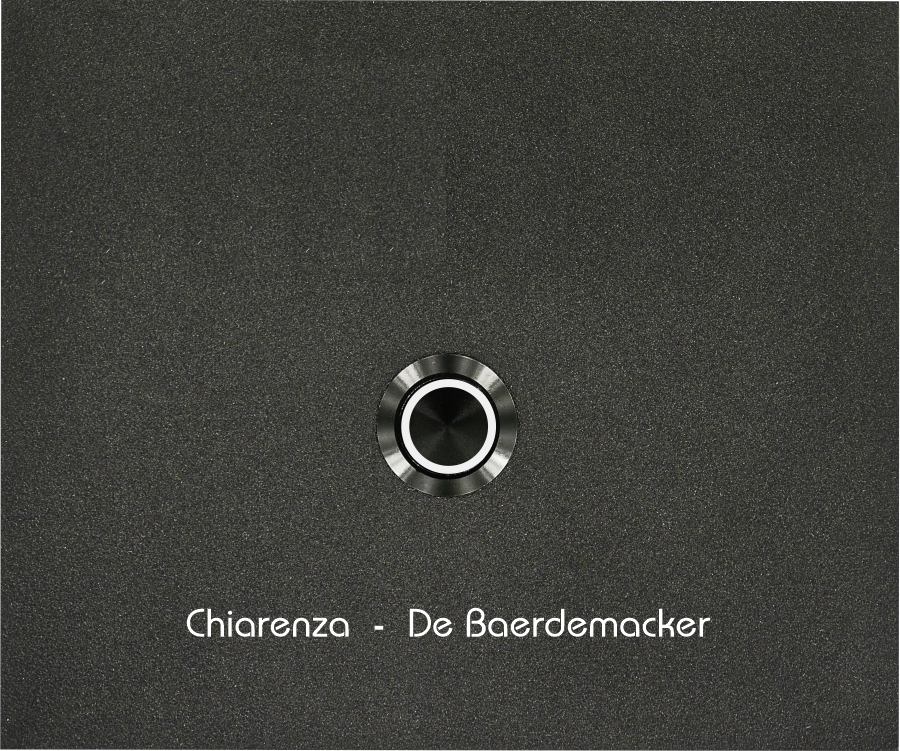

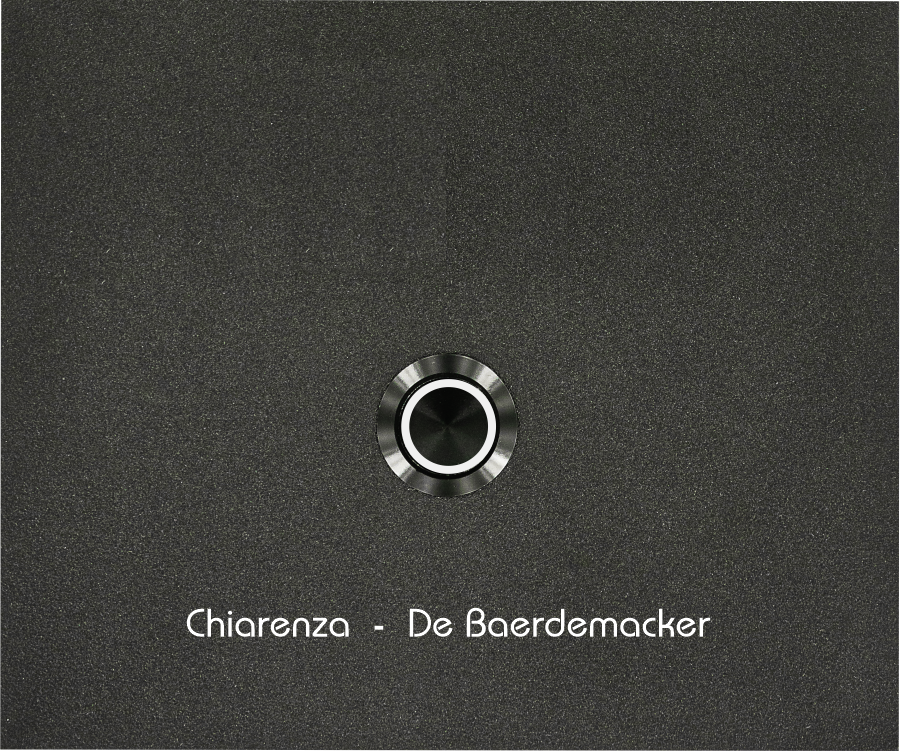

• Available with black or stainless steel doorbell button (standard) or with LED doorbell button (option)
• The LED doorbell button can be connected directly via the supplied Bticino connector + cable.




Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

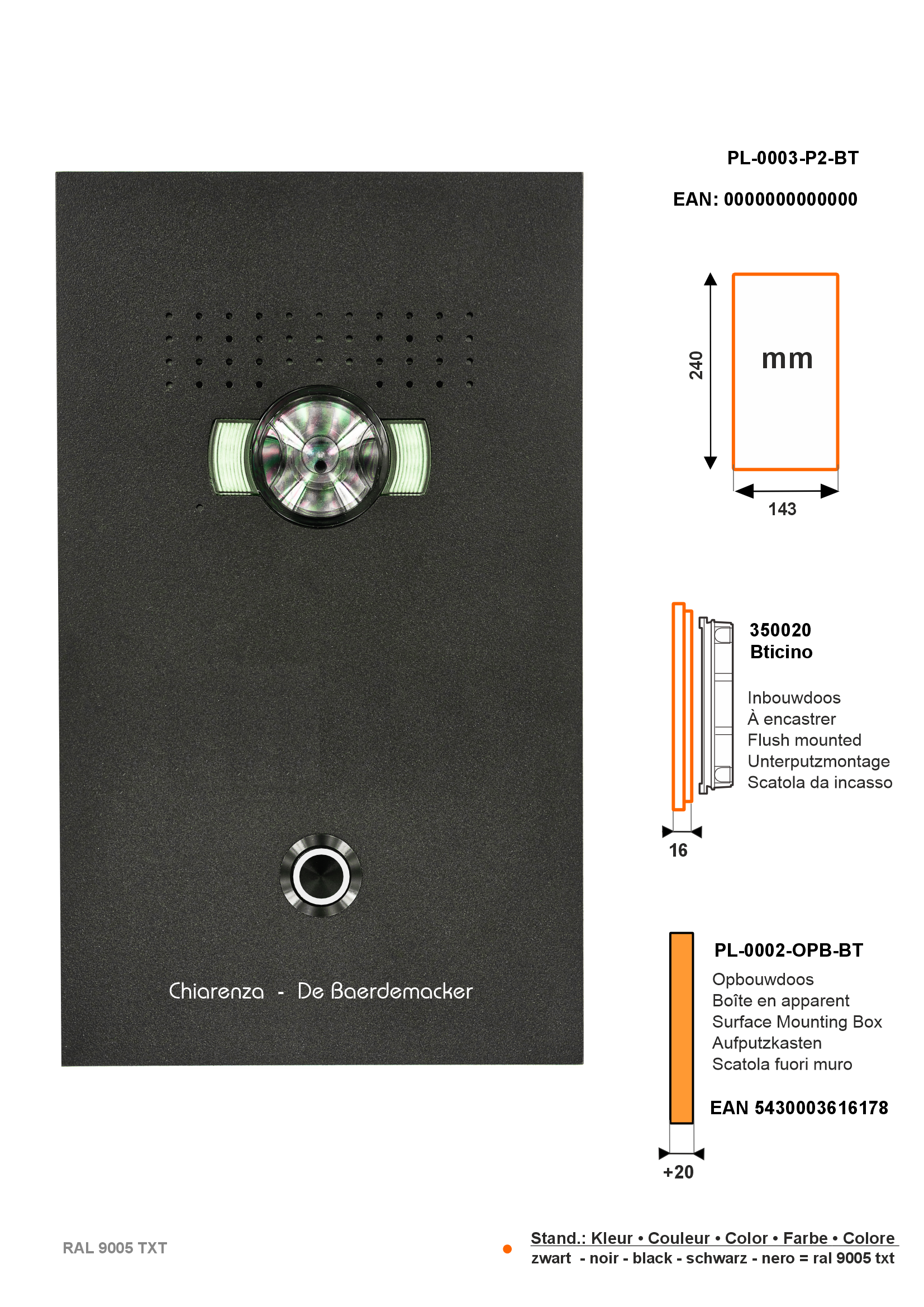

 Dimensions: width 142mm x height 240mm

We supply:

1. Front panel in ral color  (IP54 - IK08)
2. 1 call pushbutton in black, stainless steel or LED  (IP67 - IK08)
3. Basic bracket for mounting on AVT flush-mounting box 35020
4. 351305pkm - Plexiglas for module 351300 AVT
5. Screws for mounting on build-in boxes
6. Name or text : engraved

You need Bticino:

1. 350020 - flush-mounting box 2 modules

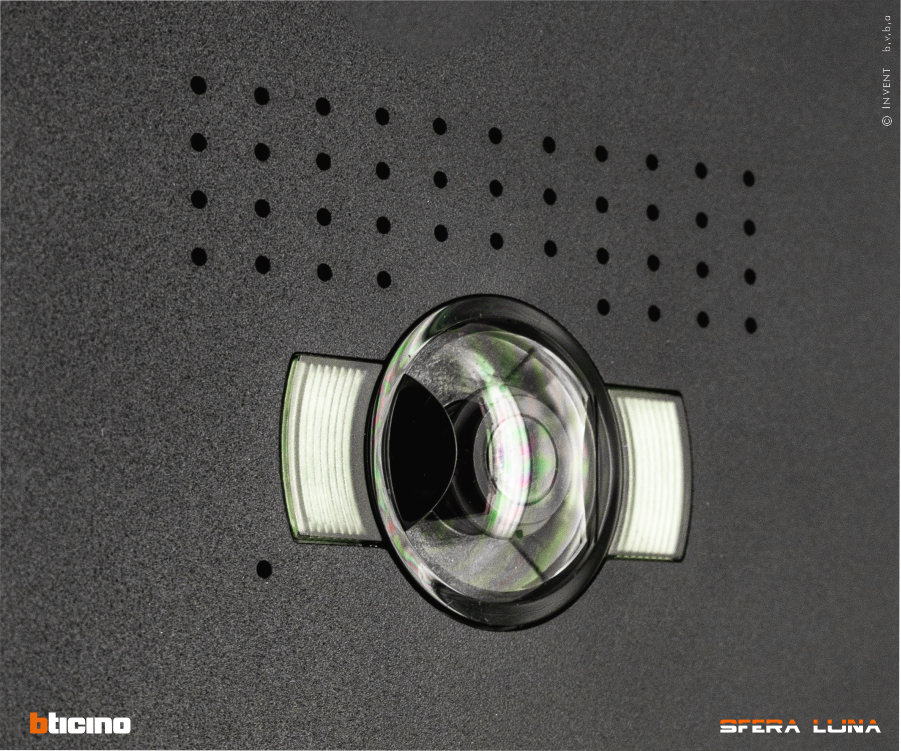

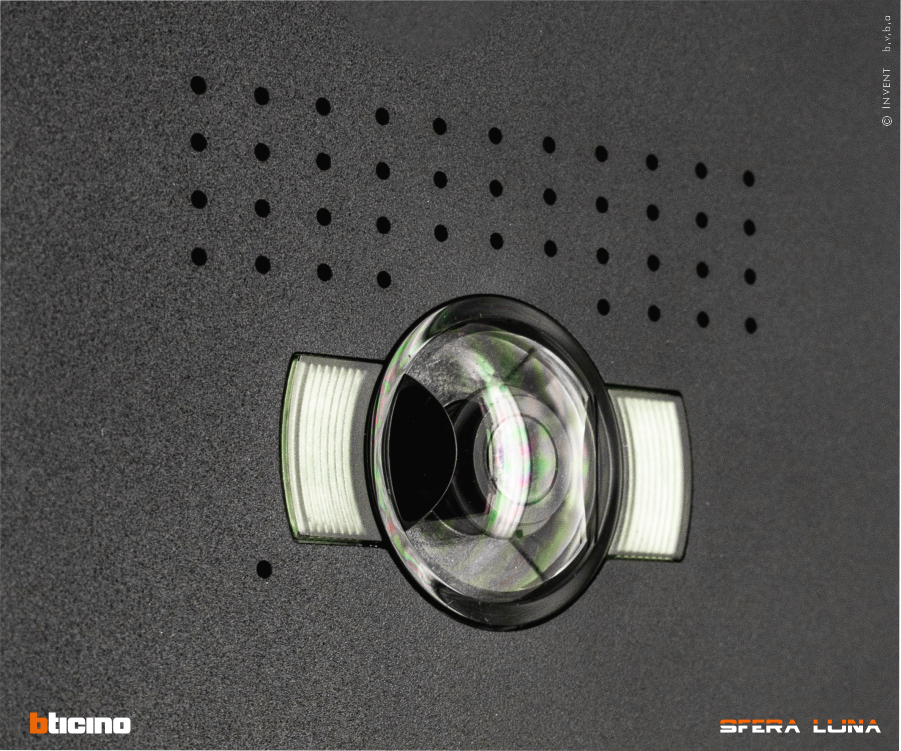

2. 351300 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera
4. 346050 - Power supply
5. Compatible with all Bticino Indoor units: Class 100X16E or  Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
