Video Parlofonie High-End Sfera Luna Bticino
Product Code : PL-0002-BT- EAN: 5430003616024

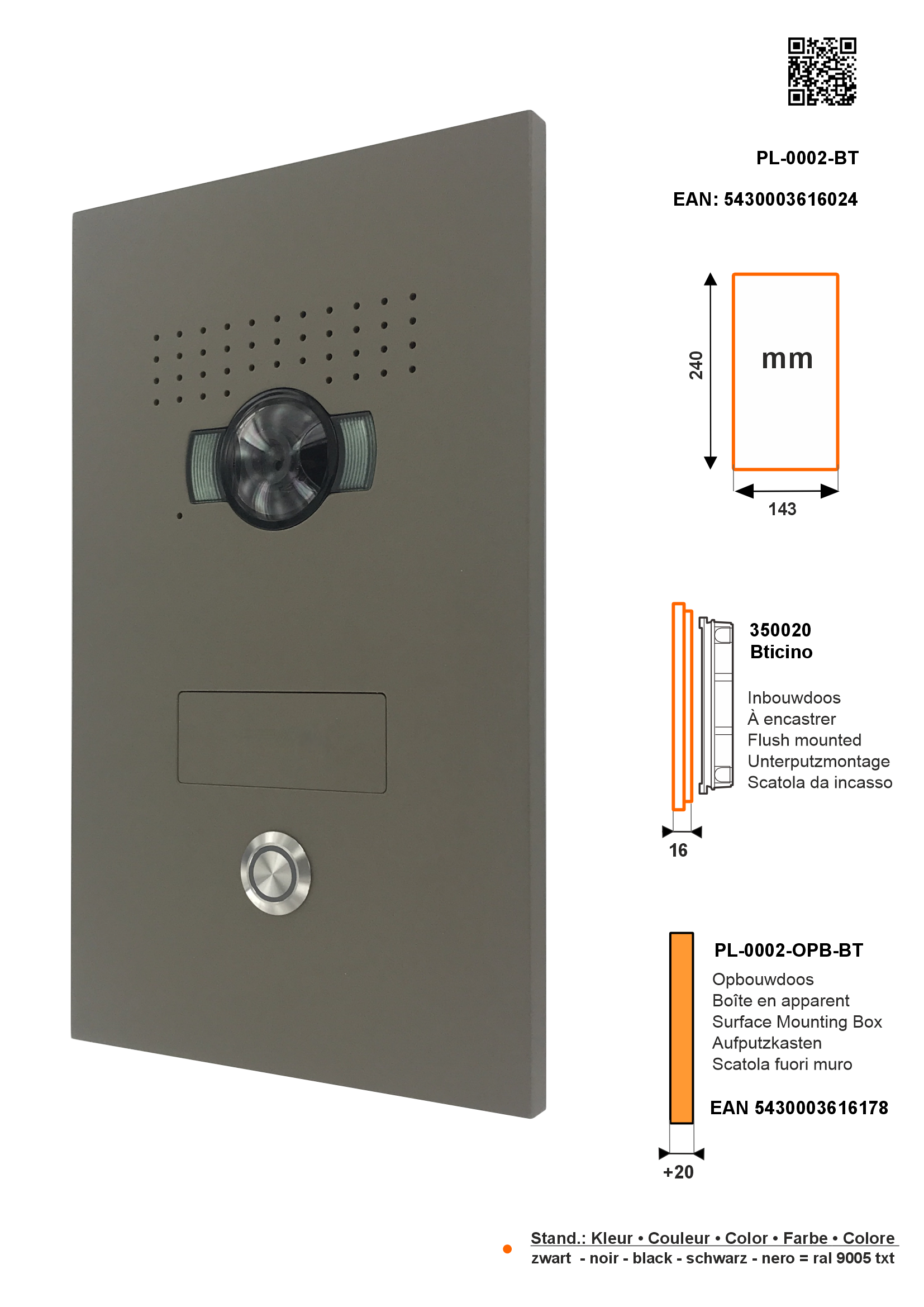

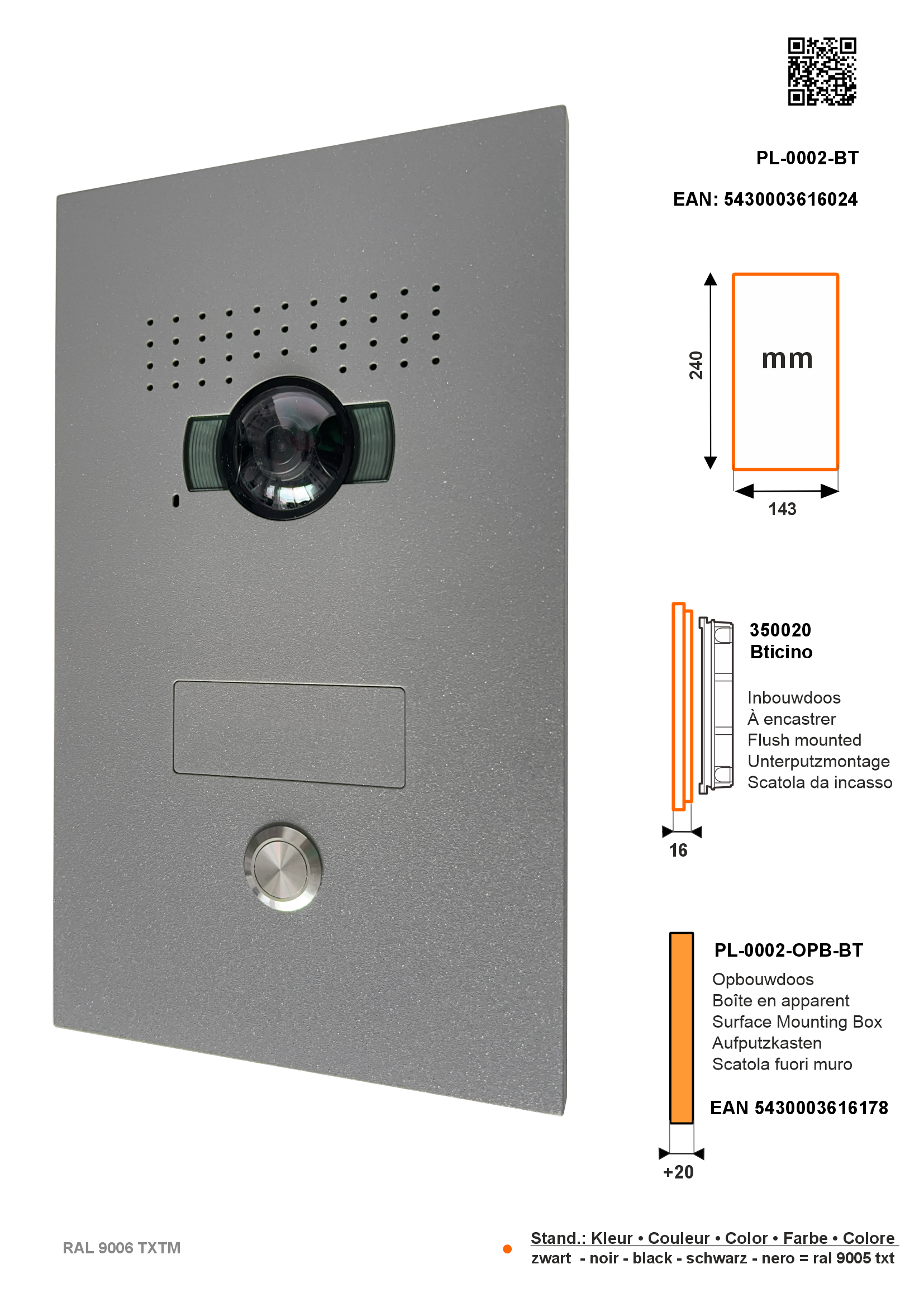

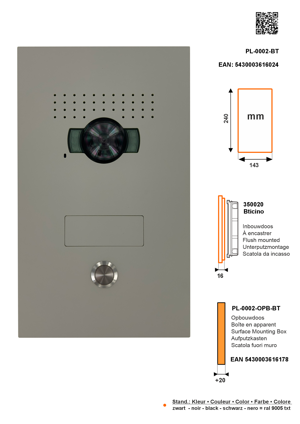

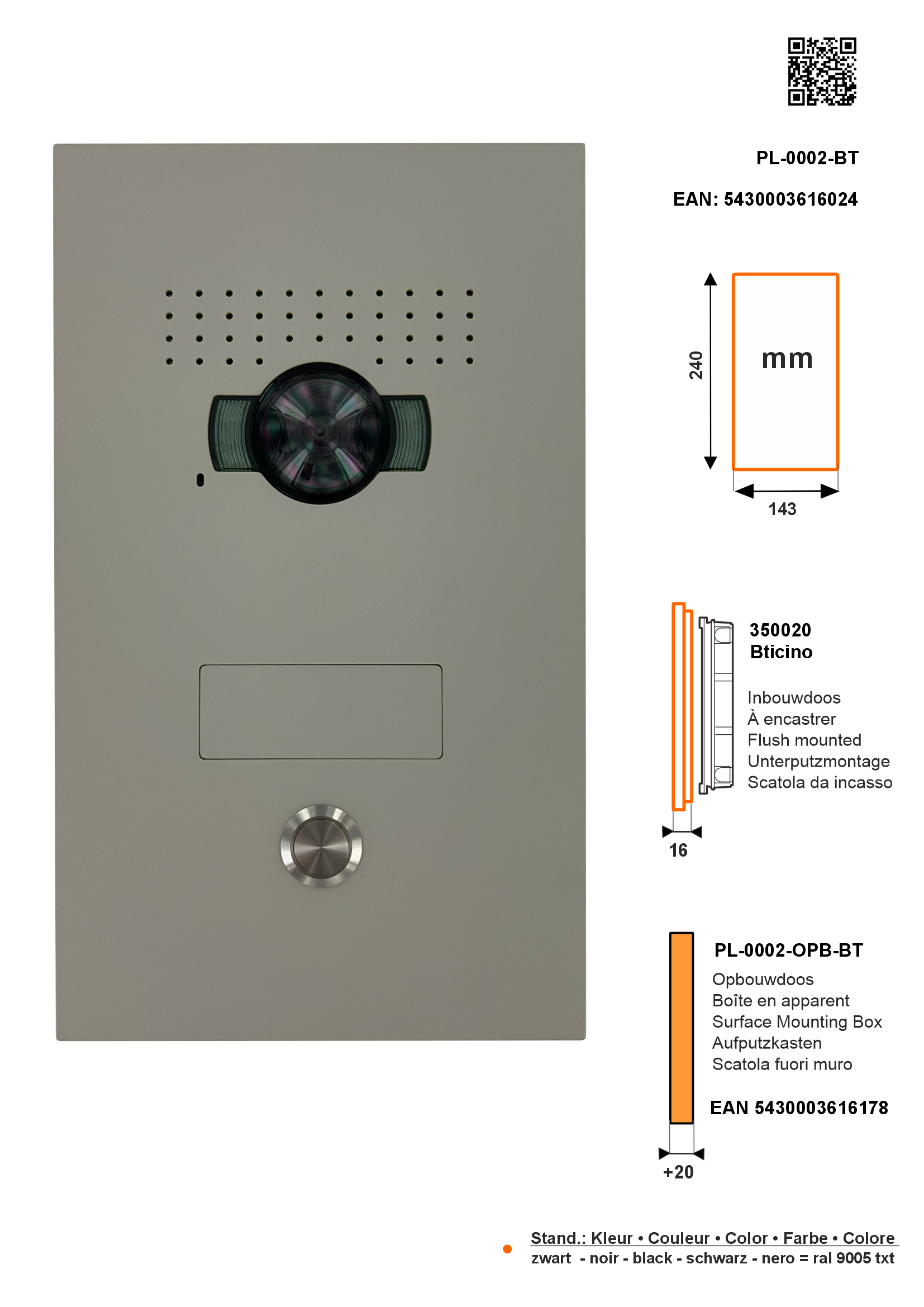

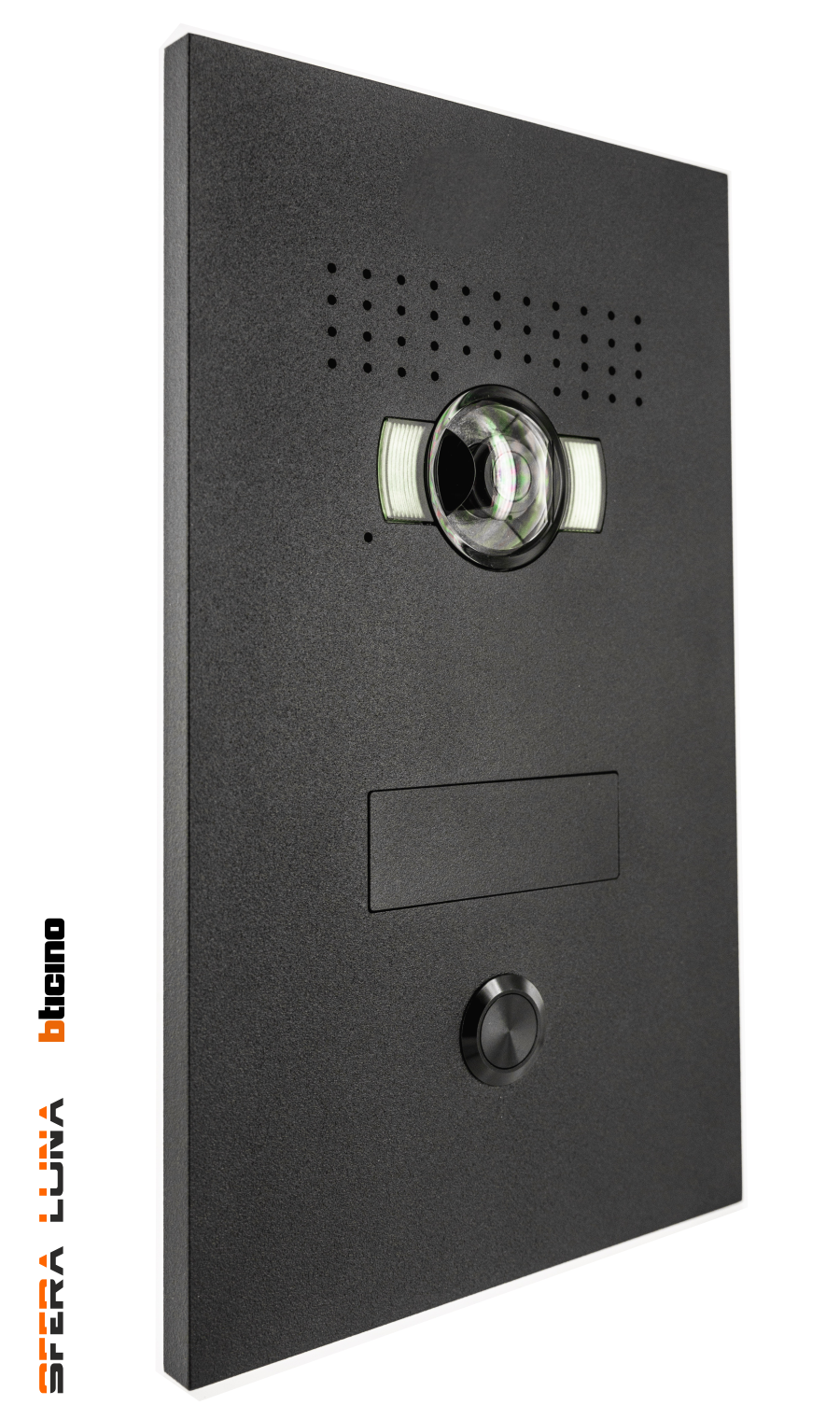

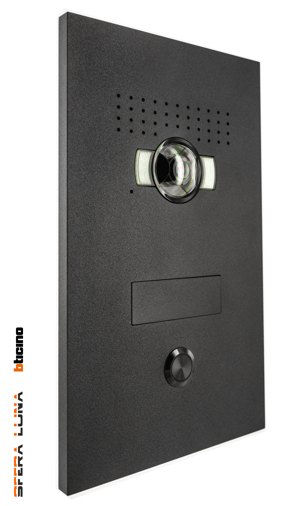

- Videophone front entrance panel SFERA LUNA with 1 replaceable name tag
For 2 wired Biticino wide angle audio/video 351300 or 351500 viewing angle: horizontal 135°- vertical 96° Sleek high-end design at the entrance of your residence Design front panel as standard in colour black ral 9005 fine texture. The front panels are available in all ral colors, matching the color of your residence or project. Interchangeable name plate / name shield: always a clean and uniform look to any residence or home.

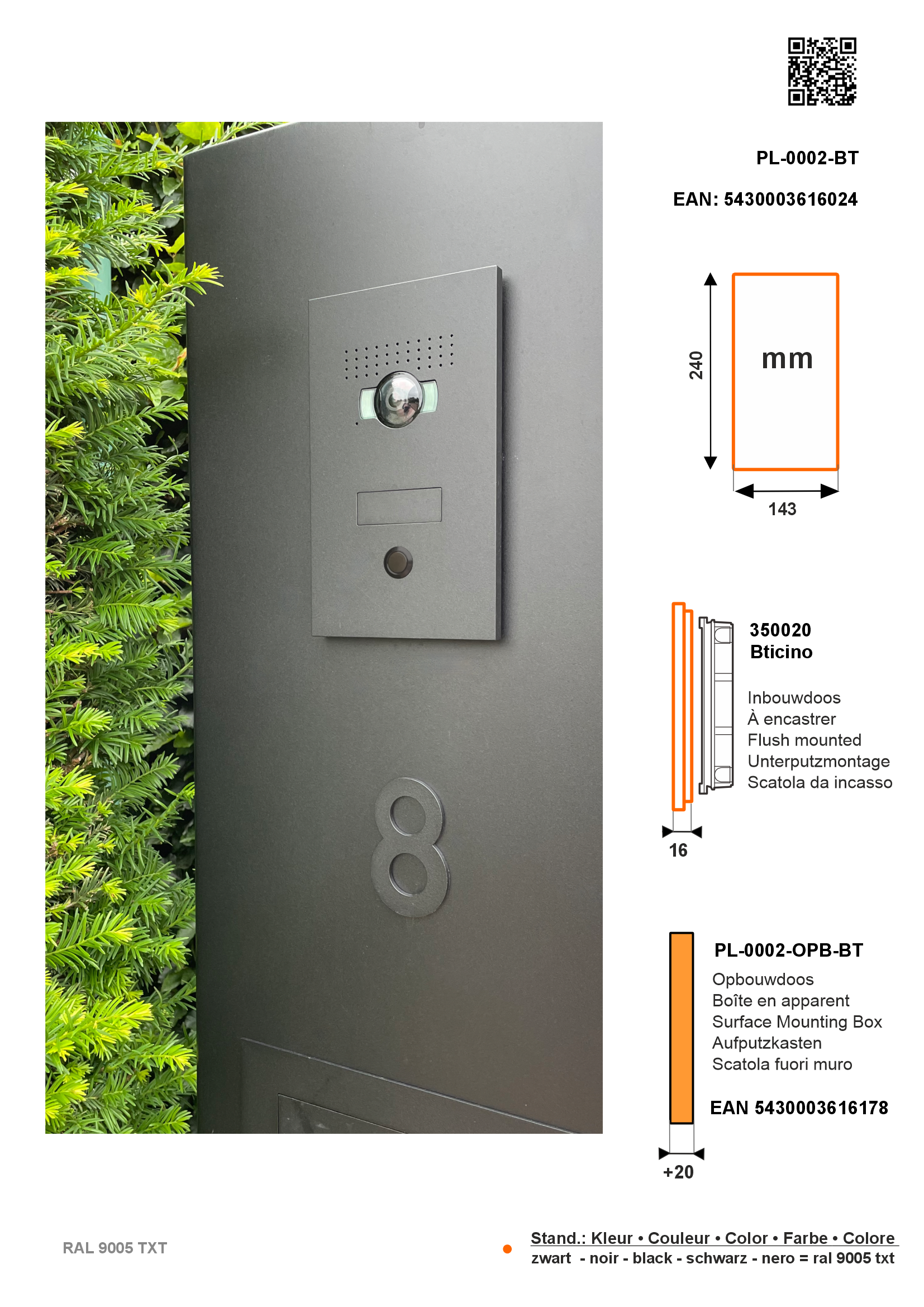

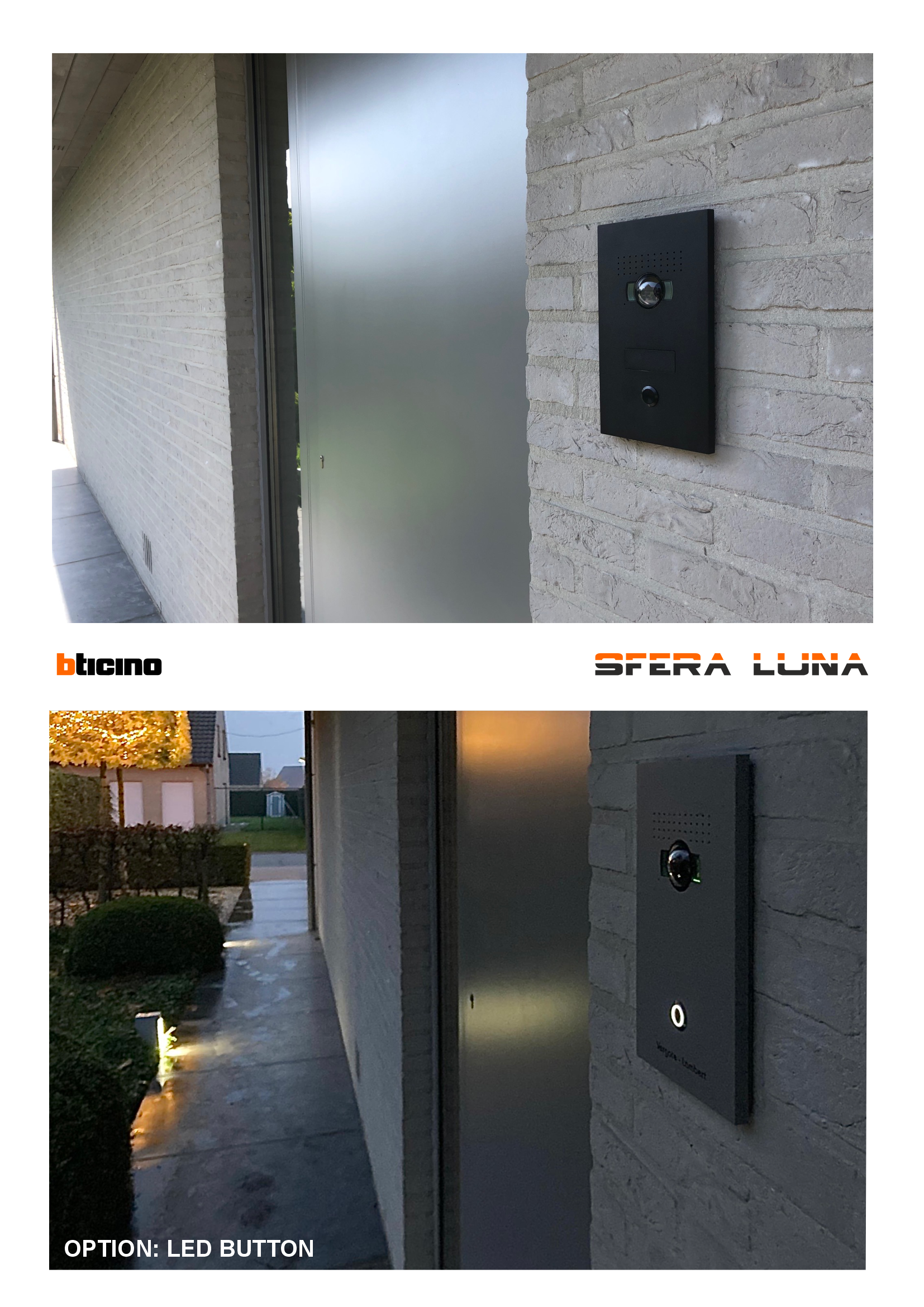

Produced in 10mm aluminium, High End, Solid finishing. Central mounting system front panel. (Simple blind mounting) Vandalism resistant. (IP54 - IK08) The name plate / name shield can be personalized when ordered or later. Installation possibilities: on walls, gates, poles, mailboxes, etc ... The name tag can be easily changed with a unique, invisible mounting system. Removable name tag can be personalized or not, when ordering or later. Easy installation in narrow environment Flush-mounting on standard box BTICINO 350020 Also available with surface-mounted module. Positioning spirit level with oblong holes
|
SFERA LUNA FOLDERS

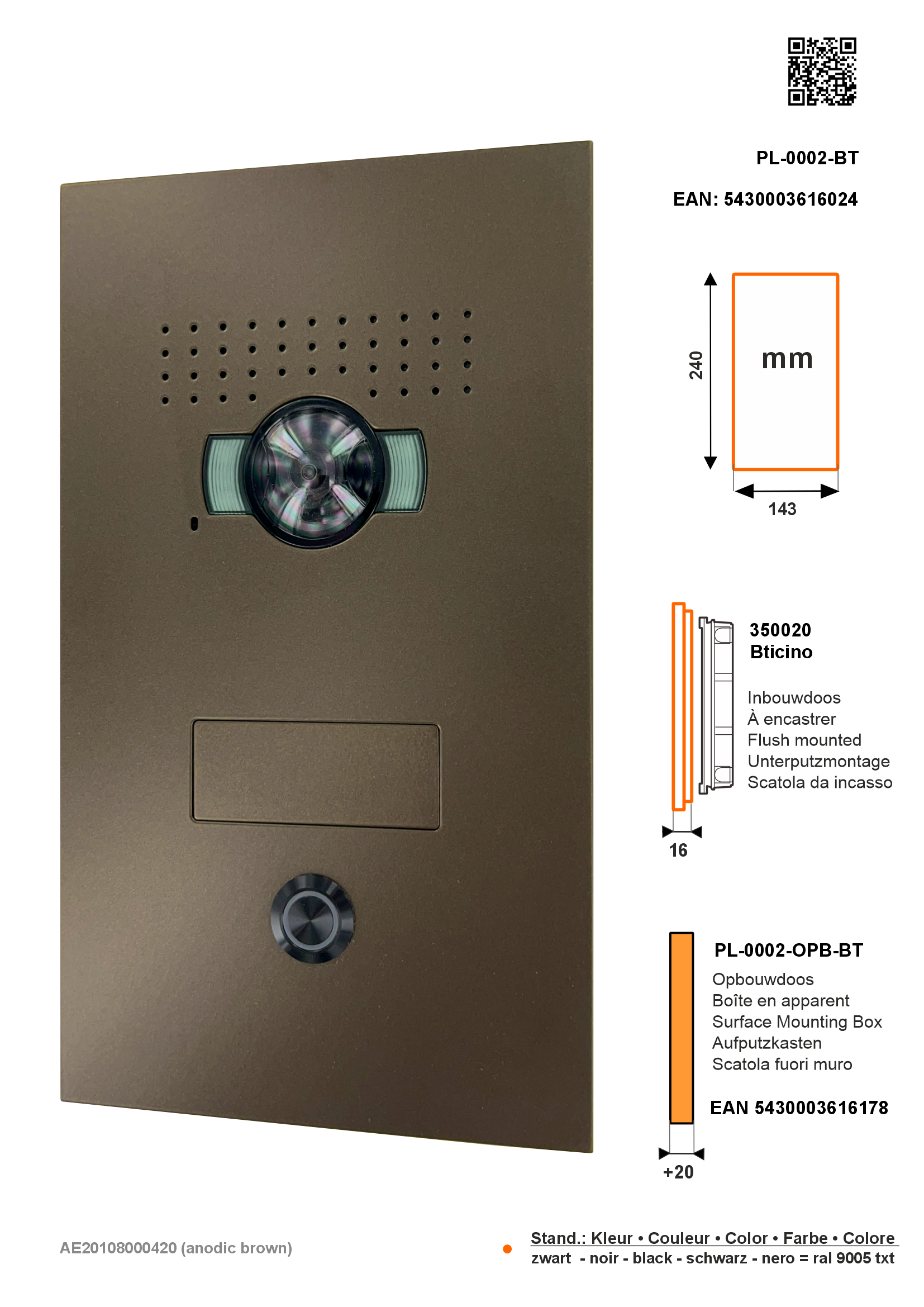

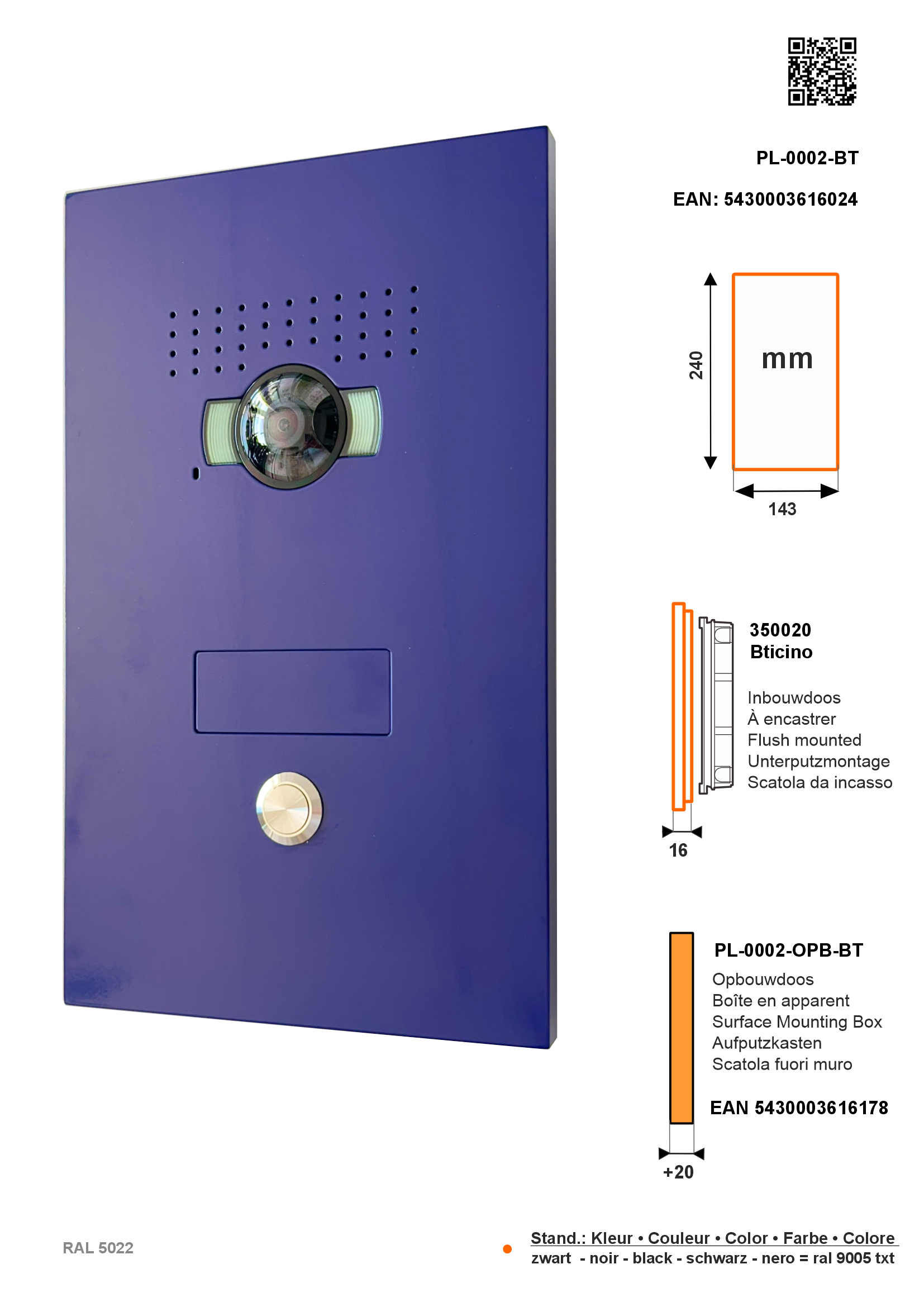

All Ral colors available

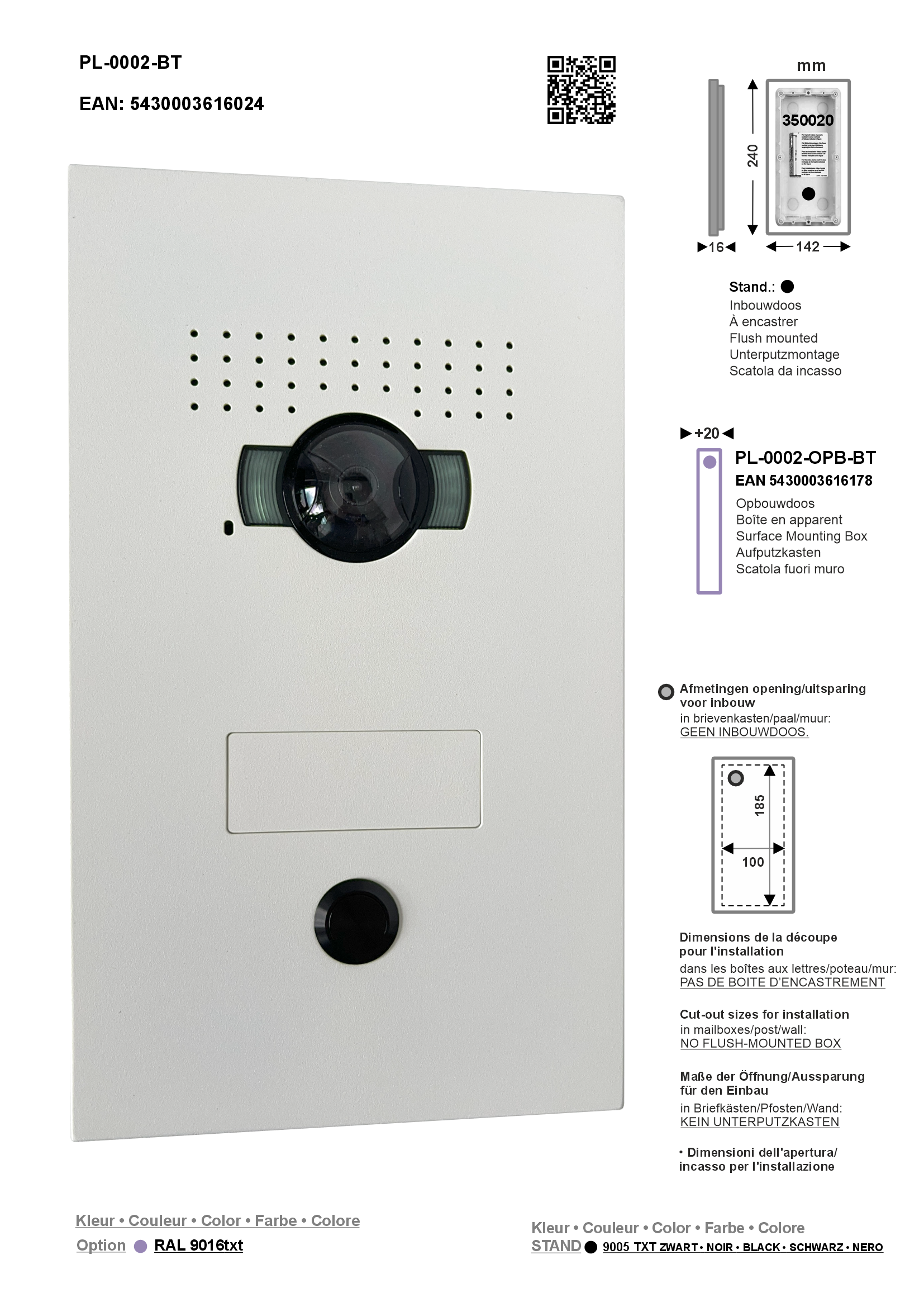

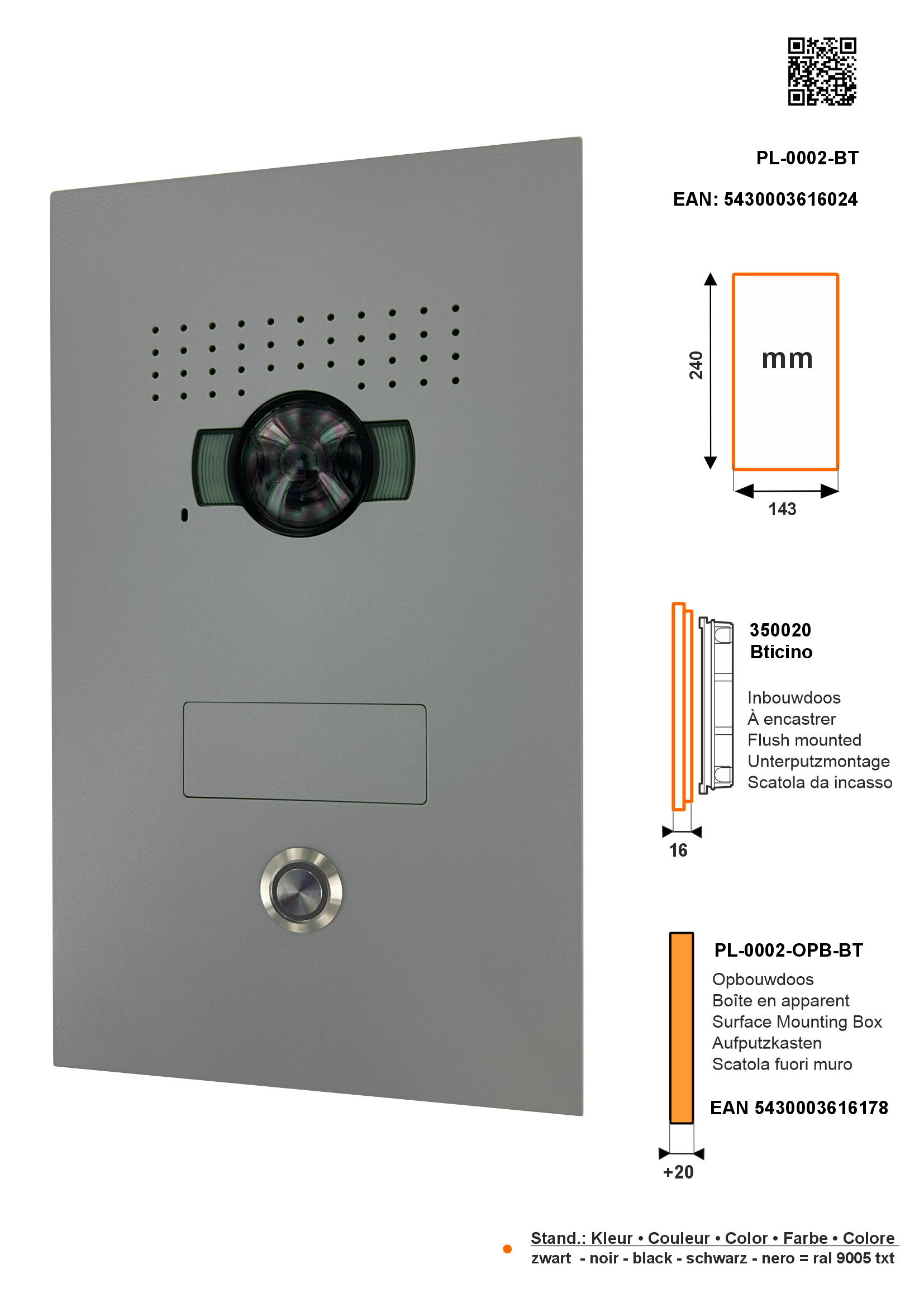

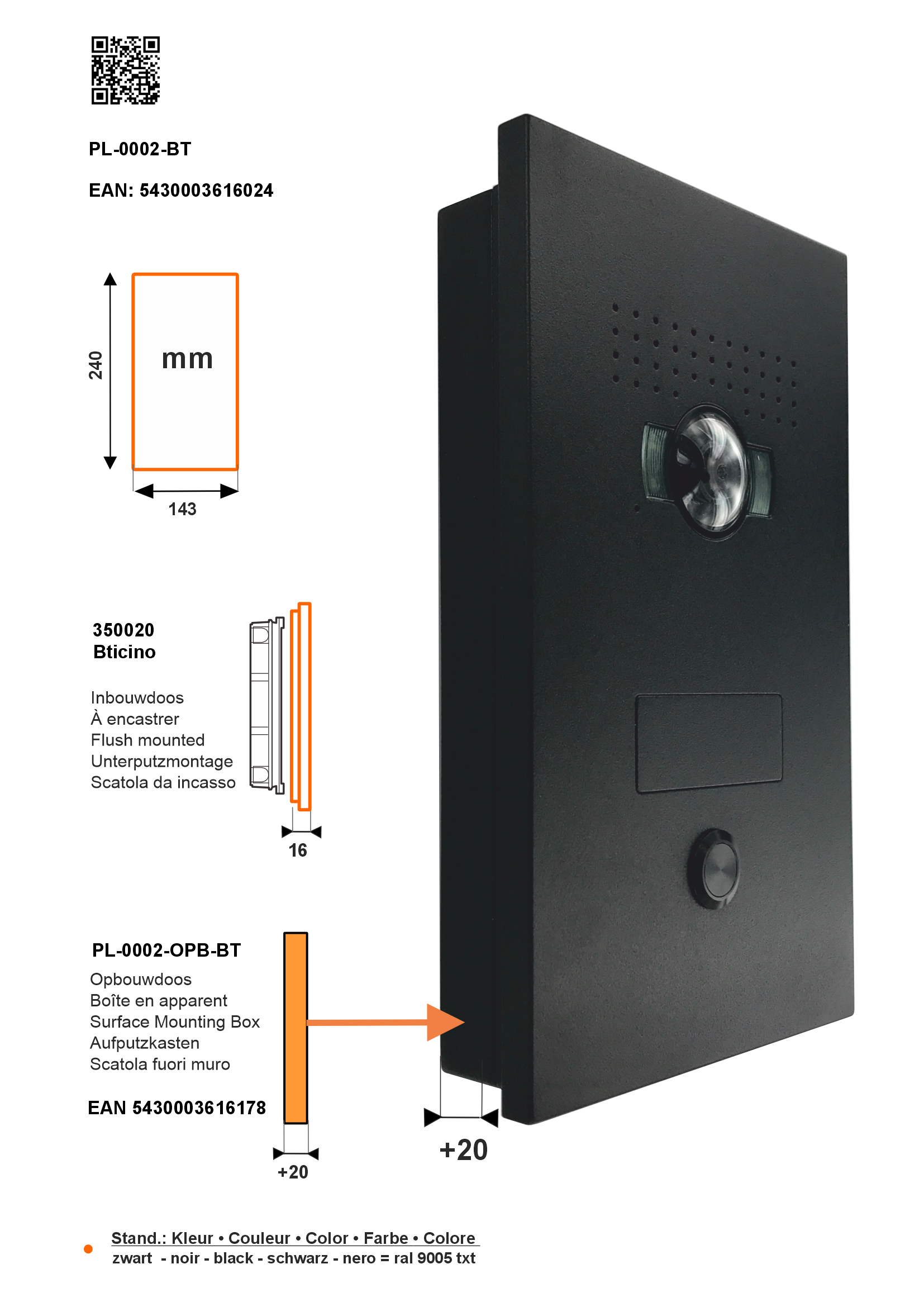

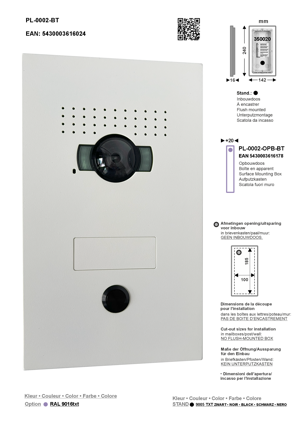

width 142mm x height 240mm |

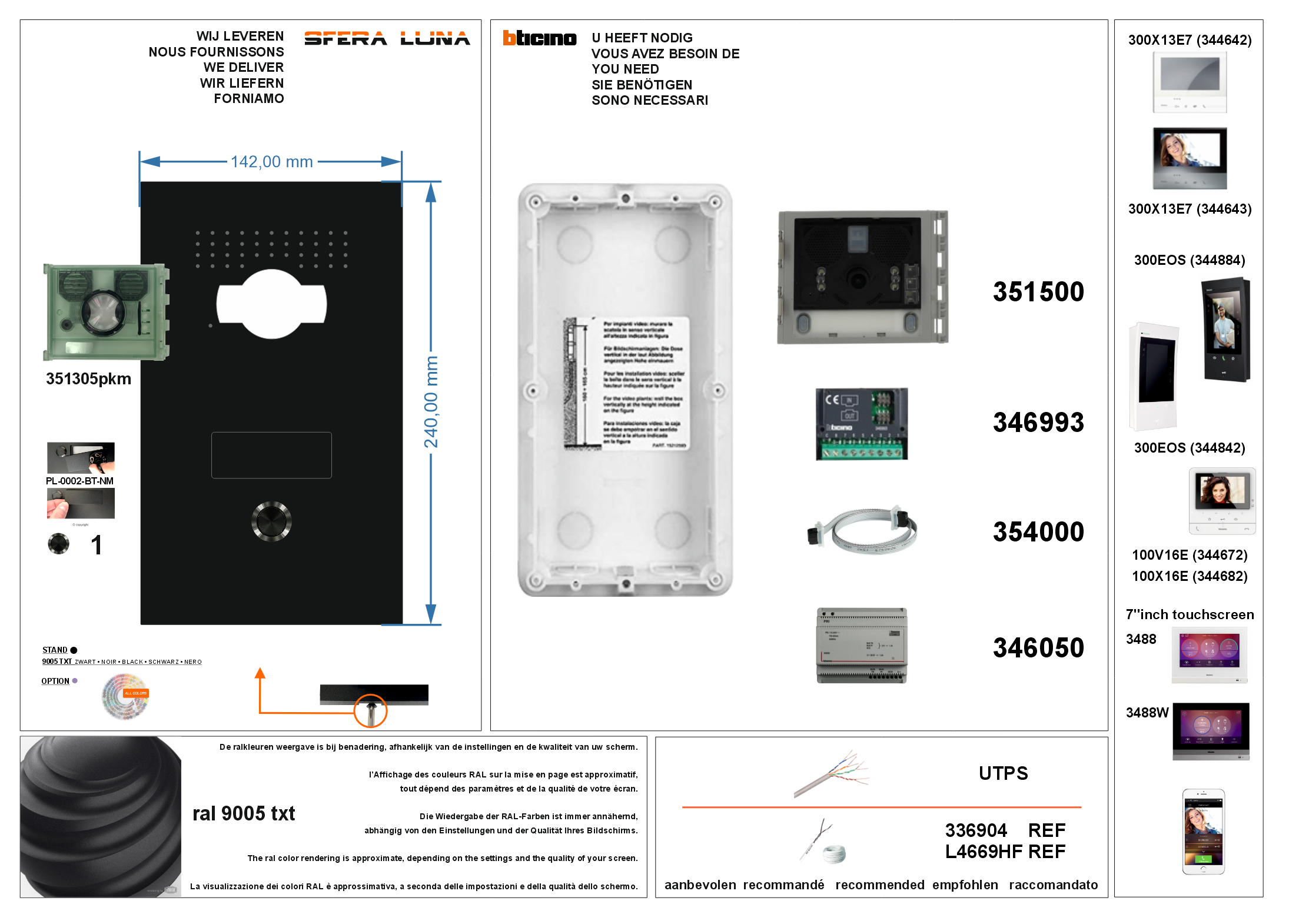

We supply: - Front panel entrance in ral color (IP54 - IK08)
- Modular panel frame + screws for installation on flush-mounting box 350020
- 351305pkm - Plexiglas for modul audio/video module with wide-angle lens 3515300 = 351500
- 1 Push button black stainlesssteel, stainlessteel, or led. (IP67 - IK08)
- 1 Interchangeable name tag (IP68)

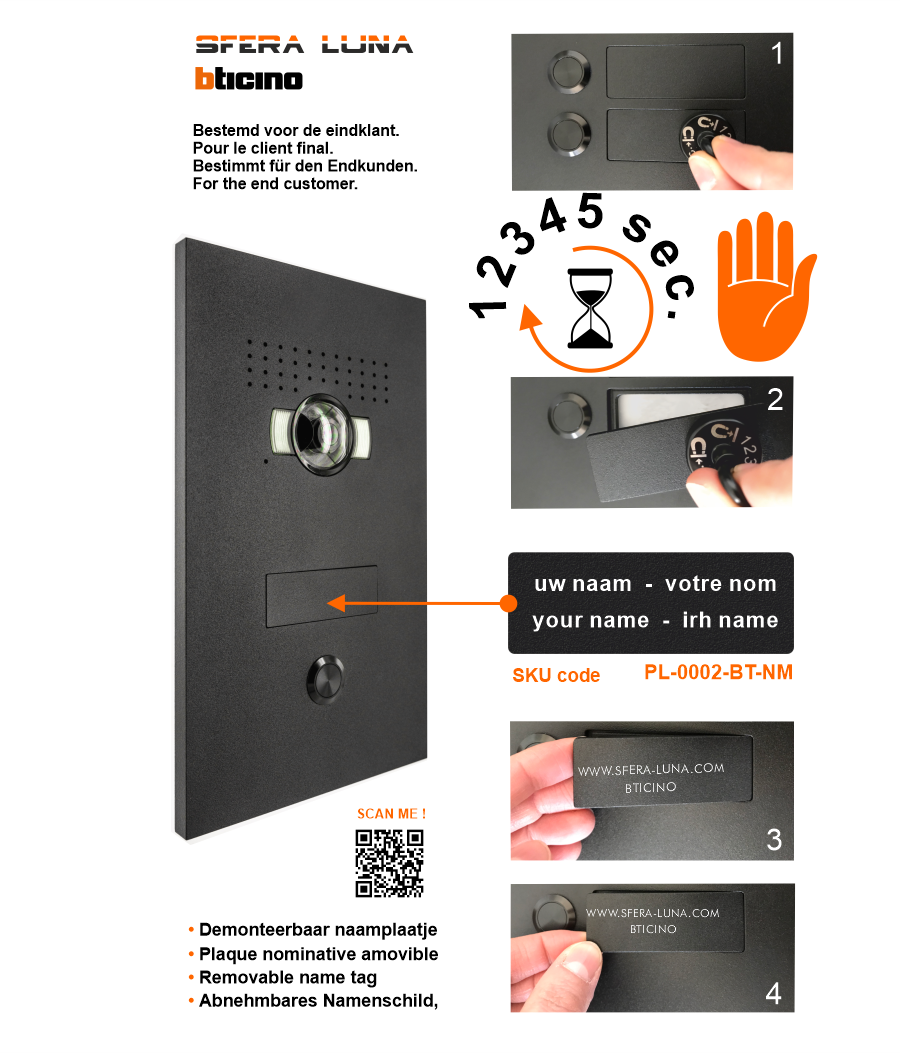

- Tool for mounting changeable name tags
You need Bticino: - 350020 - Flush-mounted box 2 modules
- 351300 or 351500 - Audio/video module with wide-angle lens
- 346993 - Interface Sfera
- 346050 - Power supply
- Compatible with all BTicino indoor units: Class 100X16E or Classe300EOS Alexa built-in wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)
These Bticino components are available: via the wholesaler via your installer/electrician https://www.bticino.be/nl/professionals/bt-certified-expert via stores https://www.bticino.be/nl/stores |
Create your personal videophone with the editor order form. - Combine your combination(s) into an original concept!
- Real time display. The rendering will always be optimized by our typographer / graphic artist.
- The order form is already preset and indicated in blue like the photo shown in our webshop.
Aluminium THE GREEN METAL: Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered. |
